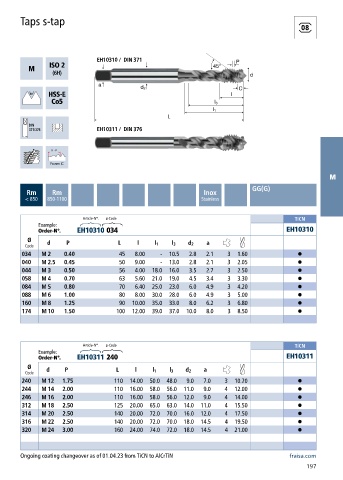

Page 199 - Carbide drills I Thread cutting tools 2023

Taps s-tap

EH10310 / DIN 371

EH10311 / DIN 376

M
GG(G)
Rm Rm Inox
< 850 850-1100 Stainless

Article-N°. ø-Code TiCN
Example:
Order-N°. EH10310 034 EH10310
Ø
Code d P L l l 1 l 3 d 2 a
034 M 2 0.40 45 8.00 - 10.5 2.8 2.1 3 1.60 •
040 M 2.5 0.45 50 9.00 - 13.0 2.8 2.1 3 2.05 •
044 M 3 0.50 56 4.00 18.0 16.0 3.5 2.7 3 2.50 •
058 M 4 0.70 63 5.60 21.0 19.0 4.5 3.4 3 3.30 •
084 M 5 0.80 70 6.40 25.0 23.0 6.0 4.9 3 4.20 •
088 M 6 1.00 80 8.00 30.0 28.0 6.0 4.9 3 5.00 •
160 M 8 1.25 90 10.00 35.0 33.0 8.0 6.2 3 6.80 •
174 M 10 1.50 100 12.00 39.0 37.0 10.0 8.0 3 8.50 •

Article-N°. ø-Code TiCN
Example:
Order-N°. EH10311 240 EH10311
Ø
Code d P L l l 1 l 3 d 2 a
240 M 12 1.75 110 14.00 50.0 48.0 9.0 7.0 3 10.20 •
244 M 14 2.00 110 16.00 58.0 56.0 11.0 9.0 4 12.00 •
246 M 16 2.00 110 16.00 58.0 56.0 12.0 9.0 4 14.00 •
312 M 18 2.50 125 20.00 65.0 63.0 14.0 11.0 4 15.50 •
314 M 20 2.50 140 20.00 72.0 70.0 16.0 12.0 4 17.50 •
316 M 22 2.50 140 20.00 72.0 70.0 18.0 14.5 4 19.50 •
320 M 24 3.00 160 24.00 74.0 72.0 18.0 14.5 4 21.00 •

Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
