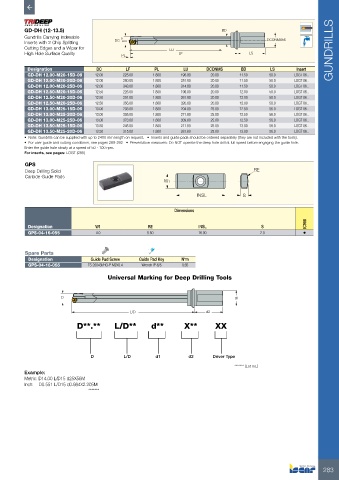

P. 285

GD-DH (12-13.5)                                                      BD
          Gundrills Carrying Indexable      0                                                  DCONMSh6
          Inserts with 2 Chip Splitting   DC -0.07
          Cutting Edges and a Wiper for                      LU                                                       GUNDRILLS
          High Hole Surface Quality         PL                  LF                      LS

           Designation             DC        LF        PL        LU       DCONMS      BD        LS       Insert
           GD-DH 12.00-M20-15D-06  12.00    225.00     1.800     196.80    20.00     11.50      50.0    LOGT 06..
           GD-DH 12.00-M20-20D-06  12.00    280.00     1.800     251.80    20.00     11.50      50.0    LOGT 06..
           GD-DH 12.00-M20-25D-06  12.00    343.00     1.800     314.80    20.00     11.50      50.0    LOGT 06..
           GD-DH 12.50-M20-15D-06  12.50    226.00     1.800     196.80    20.00     12.00      50.0    LOGT 06..
           GD-DH 12.50-M20-20D-06  12.50    291.00     1.800     261.80    20.00     12.00      50.0    LOGT 06..
           GD-DH 12.50-M20-25D-06  12.50    356.00     1.800     326.80    20.00     12.00      50.0    LOGT 06..
           GD-DH 13.00-M25-15D-06  13.00    238.00     1.800     204.80    25.00     12.50      56.0    LOGT 06..
           GD-DH 13.00-M25-20D-06  13.00    305.00     1.800     271.80    25.00     12.50      56.0    LOGT 06..
           GD-DH 13.00-M25-25D-06  13.00    373.00     1.800     339.80    25.00     12.50      56.0    LOGT 06..
           GD-DH 13.50-M25-15D-06  13.50    245.00     1.800     211.80    25.00     13.00      56.0    LOGT 06..
           GD-DH 13.50-M25-20D-06  13.50    315.00     1.800     281.80    25.00     13.00      56.0    LOGT 06..
          •  Note: Gundrills can be supplied with up to 2400 mm length on request.   •  Inserts and guide pads should be ordered separately (they are not included with the tools).
          •  For user guide and cutting conditions, see pages 289-292   •  Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole.
          Enter the guide hole slowly at a speed of 50 - 100 rpm.
          For inserts, see pages: LOGT (288)
          GPS
          Deep Drilling Solid                                                             RE
          Carbide Guide Pads
                                                           W1

                                                                      INSL            S


                                                              Dimensions
                                                                                                             IC908
           Designation             W1                RE                INSL                  S
           GPS-04-16-055           4.0               5.50              16.00                2.0            •



          Spare Parts
           Designation           Guide Pad Screw  Guide Pad Key  N*m
           GPS-04-16-055        TS 20043I/HG-P M2X0.4  Wrench IP-6/5  0.65
                                       Universal Marking for Deep Drilling Tools



                       D                                                           d1

                                               L/D                       d2
                            D**.**       L/D**        d**         X**        XX






                                 D          L/D         d1         d2       Driver Type
                                                                                   ******* [Lot no.]
          Example:
          Metric: D14.00 L/D15 d25X56M
          Inch:    D0.551 L/D15 d0.984X2.205M
                                                          *******
