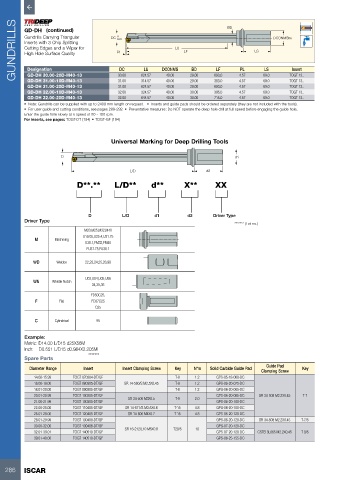

P. 288

GUNDRILLS  GD-DH (continued)                0 PL        LU  LF             BD       LS     DCONMSh6

          Gundrills Carrying Triangular
                                        DC  -0.07
          Inserts with 3 Chip Splitting
          Cutting Edges and a Wiper for
          High Hole Surface Quality

                                                                    BD
                                                                                              LS
           Designation
                                                                                     PL
                                                                             LF
                                           DC
                                                    LU
                                                                                                        Insert
           GD-DH 30.00-20D-M40-13
                                                           40.00
                                                                                     4.57
                                                                    29.00
                                                           40.00
                                                                            383.0
                                                   314.57
           GD-DH 31.00-10D-M40-13
                                                                                             69.0
                                                                                                       TOGT 13..
                                          31.00
                                                           40.00
                                                   624.57
                                                                                                       TOGT 13..
                                          31.00
           GD-DH 31.00-20D-M40-13         30.00    624.57  DCONMS   29.00   693.0    4.57    69.0      TOGT 13..
                                                                                     4.57
                                                                            693.0
                                                                    29.00
                                                                                             69.0
           GD-DH 32.00-10D-M40-13         32.00    324.57  40.00    30.00   395.0    4.57    69.0      TOGT 13..
           GD-DH 32.00-20D-M40-13         32.00    644.57  40.00    30.00   715.0    4.57    69.0      TOGT 13..
          •  Note: Gundrills can be supplied with up to 2400 mm length on request.   •  Inserts and guide pads should be ordered separately (they are not included with the tools).
          •  For user guide and cutting conditions, see pages 289-292  •  Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole.
          Enter the guide hole slowly at a speed of 50 - 100 rpm.
          For inserts, see pages: TOGT-DT (194) • TOGT-GF (194)
                                        Universal Marking for Deep Drilling Tools
                       D                                                           d1
                                               L/D                       d2
                            D**.**       L/D**        d**         X**        XX
                                D           L/D        d1          d2       Driver Type
          Driver Type
                                                                                   ******* [Lot no.]
                               M20,M25,M32,M40
                              U19.05,U25.4,U31.75
             M      Machining
                               U38.1,FM32,FM40
                               FU31.75,FU38.1
             WD      Weldon    22,23,24,25,26,99
                               U03,U04,U05,U06
             WN    Whistle Notch
                                 34,35,36
                                 FD50C25,
             F        Flat       FD37C25
                                  C25

             C      Cylindrical    95

          Example:
          Metric: D14.00 L/D15 d25X56M
          Inch:    D0.551 L/D15 d0.984X2.205M
                                                          *******
          Spare Parts
                                                                                               Guide Pad
           Diameter Range     Insert        Insert Clamping Screw  Key  N*m  Solid Carbide Guide Pad       Key
                                                                                             Clamping Screw
             14.00-15.99   TOGT 070304-DT/GF                   T-8   1.2     GPS-05-18-060-DC
             16.00-18.00   TOGT 080305-DT/GF  SR 14-560/S M2.5X0.45  T-8  1.2  GPS-06-20-075-DC
             18.01-20.00   TOGT 090305-DT/GF                   T-8   1.2     GPS-06-20-085-DC
             20.01-20.99   TOGT 100305-DT/GF  SR 34-506 M3X0.5  T-9  2.0     GPS-06-20-085-DC  SR 34-508 M2.2X0.45  T-7
             21.00-21.99   TOGT 100305-DT/GF                                 GPS-06-20-100-DC
             22.00-25.00   TOGT 110405-DT/GF  SR 14-571/S M3.5X0.6  T-15  4.8  GPS-06-20-100-DC
             25.01-28.00   TOGT 120405-DT/GF  SR 14-506 M4X0.7  T-15  4.8    GPS-06-20-120-DC
             28.01-29.99   TOGT 130408-DT/GF                                 GPS-06-20-120-DC  SR 34-508 M2.2X0.45  T-7/5
             30.00-32.00   TOGT 130408-DT/GF                                 GPS-07-20-120-DC
             32.01-39.01   TOGT 140510-DT/GF  SR 16-212/L10 M5X0.8  T20/5  10  GPS-07-20-120-DC  CSTB-3L065 M2.2X0.45  T-9/5
             39.01-40.00   TOGT 140510-DT/GF                                 GPS-08-25-155-DC
