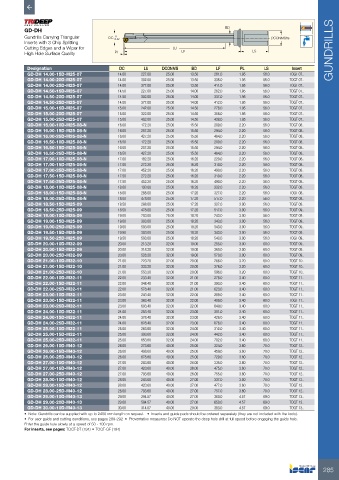

Page 287 - ISCAR(HOLE_MAKING_CATALOG_65)

BD
GD-DH
Gundrills Carrying Triangular 0 DCONMSh6
DC -0.07
Inserts with 3 Chip Splitting
Cutting Edges and a Wiper for LU GUNDRILLS
High Hole Surface Quality PL LF LS
Designation DC LU DCONMS BD LF PL LS Insert

GD-DH 14.00-15D-M25-07 14.00 227.00 25.00 13.50 261.0 1.95 56.0 TOGT 07..
GD-DH 14.00-20D-M25-07 14.00 302.00 25.00 13.50 336.0 1.95 56.0 TOGT 07..
GD-DH 14.00-25D-M25-07 14.00 377.00 25.00 13.50 411.0 1.95 56.0 TOGT 07..
GD-DH 14.50-15D-M25-07 14.50 227.00 25.00 14.00 262.0 1.95 56.0 TOGT 07..
GD-DH 14.50-20D-M25-07 14.50 302.00 25.00 14.00 337.0 1.95 56.0 TOGT 07..
GD-DH 14.50-25D-M25-07 14.50 377.00 25.00 14.00 412.0 1.95 56.0 TOGT 07..
GD-DH 15.00-15D-M25-07 15.00 242.00 25.00 14.50 278.0 1.95 56.0 TOGT 07..
GD-DH 15.00-20D-M25-07 15.00 322.00 25.00 14.50 358.0 1.95 56.0 TOGT 07..
GD-DH 15.00-25D-M25-07 15.00 402.00 25.00 14.50 438.0 1.95 56.0 TOGT 07..
GD-DH 16.00-10D-M25-08-N 16.00 172.20 25.00 15.50 209.0 2.20 56.0 TOGT 08..
GD-DH 16.00-15D-M25-08-N 16.00 257.20 25.00 15.50 294.0 2.20 56.0 TOGT 08..
GD-DH 16.00-25D-M25-08-N 16.00 427.20 25.00 15.50 464.0 2.20 56.0 TOGT 08..
GD-DH 16.50-10D-M25-08-N 16.50 172.20 25.00 15.50 209.0 2.20 56.0 TOGT 08..
GD-DH 16.50-15D-M25-08-N 16.50 257.20 25.00 15.50 294.0 2.20 56.0 TOGT 08..
GD-DH 16.50-25D-M25-08-N 16.50 427.20 25.00 15.50 464.0 2.20 56.0 TOGT 08..
GD-DH 17.00-10D-M25-08-N 17.00 182.20 25.00 16.20 220.0 2.20 56.0 TOGT 08..
GD-DH 17.00-15D-M25-08-N 17.00 272.20 25.00 16.20 310.0 2.20 56.0 TOGT 08..
GD-DH 17.00-25D-M25-08-N 17.00 452.20 25.00 16.20 490.0 2.20 56.0 TOGT 08..
GD-DH 17.50-15D-M25-08-N 17.50 272.20 25.00 16.20 310.0 2.20 56.0 TOGT 08..
GD-DH 17.50-25D-M25-08-N 17.50 452.20 25.00 16.20 490.0 2.20 56.0 TOGT 08..
GD-DH 18.00-10D-M25-08-N 18.00 193.00 25.00 16.20 232.0 2.20 56.0 TOGT 08..
GD-DH 18.00-15D-M25-08-N 18.00 288.00 25.00 17.20 327.0 2.20 56.0 TOGT 08..
GD-DH 18.00-25D-M25-08-N 18.00 478.00 25.00 17.20 517.0 2.20 56.0 TOGT 08..
GD-DH 18.50-15D-M25-09 18.50 288.00 25.00 17.20 327.0 3.00 56.0 TOGT 09..
GD-DH 18.50-25D-M25-09 18.50 478.00 25.00 17.20 517.0 3.00 56.0 TOGT 09..
GD-DH 19.00-10D-M25-09 19.00 203.00 25.00 18.20 243.0 3.00 56.0 TOGT 09..
GD-DH 19.00-15D-M25-09 19.00 303.00 25.00 18.20 343.0 3.00 56.0 TOGT 09..
GD-DH 19.00-25D-M25-09 19.00 503.00 25.00 18.20 543.0 3.00 56.0 TOGT 09..
GD-DH 19.50-15D-M25-09 19.50 303.00 25.00 18.20 343.0 3.00 56.0 TOGT 09..
GD-DH 19.50-25D-M25-09 19.50 503.00 25.00 18.20 543.0 3.00 56.0 TOGT 09..
GD-DH 20.00-10D-M32-09 20.00 213.20 32.00 19.00 255.0 3.00 60.0 TOGT 09..
GD-DH 20.00-15D-M32-09 20.00 318.20 32.00 19.00 360.0 3.00 60.0 TOGT 09..
GD-DH 20.00-25D-M32-09 20.00 528.20 32.00 19.00 570.0 3.00 60.0 TOGT 09..
GD-DH 21.00-10D-M32-10 21.00 223.20 32.00 20.00 266.0 3.20 60.0 TOGT 10..
GD-DH 21.00-15D-M32-10 21.00 333.20 32.00 20.00 376.0 3.20 60.0 TOGT 10..
GD-DH 21.00-25D-M32-10 21.00 553.20 32.00 20.00 596.0 3.20 60.0 TOGT 10..
GD-DH 22.00-10D-M32-11 22.00 233.40 32.00 21.00 278.0 3.40 60.0 TOGT 11..
GD-DH 22.00-15D-M32-11 22.00 348.40 32.00 21.00 393.0 3.40 60.0 TOGT 11..
GD-DH 22.00-25D-M32-11 22.00 578.40 32.00 21.00 623.0 3.40 60.0 TOGT 11..
GD-DH 23.00-10D-M32-11 23.00 243.40 32.00 22.00 289.0 3.40 60.0 TOGT 11..
GD-DH 23.00-15D-M32-11 23.00 363.40 32.00 22.00 409.0 3.40 60.0 TOGT 11..
GD-DH 23.00-25D-M32-11 23.00 603.40 32.00 22.00 649.0 3.40 60.0 TOGT 11..
GD-DH 24.00-10D-M32-11 24.00 253.40 32.00 23.00 301.0 3.40 60.0 TOGT 11..
GD-DH 24.00-15D-M32-11 24.00 378.40 32.00 23.00 426.0 3.40 60.0 TOGT 11..
GD-DH 24.00-25D-M32-11 24.00 628.40 32.00 23.00 676.0 3.40 60.0 TOGT 11..
GD-DH 25.00-10D-M32-11 25.00 263.60 32.00 24.00 312.0 3.40 60.0 TOGT 11..
GD-DH 25.00-15D-M32-11 25.00 393.60 32.00 24.00 442.0 3.40 60.0 TOGT 11..
GD-DH 25.00-25D-M32-11 25.00 653.60 32.00 24.00 702.0 3.40 60.0 TOGT 11..
GD-DH 26.00-10D-M40-12 26.00 273.60 40.00 25.00 324.0 3.60 70.0 TOGT 12..
GD-DH 26.00-15D-M40-12 26.00 408.60 40.00 25.00 459.0 3.60 70.0 TOGT 12..
GD-DH 26.00-25D-M40-12 26.00 678.60 40.00 25.00 729.0 3.60 70.0 TOGT 12..
GD-DH 27.00-10D-M40-12 27.00 283.60 40.00 26.00 335.0 3.60 70.0 TOGT 12..
GD-DH 27.00-15D-M40-12 27.00 423.60 40.00 26.00 475.0 3.60 70.0 TOGT 12..
GD-DH 27.00-25D-M40-12 27.00 703.60 40.00 26.00 755.0 3.60 70.0 TOGT 12..
GD-DH 28.00-10D-M40-12 28.00 283.60 40.00 27.00 337.0 3.60 70.0 TOGT 12..
GD-DH 28.00-15D-M40-12 28.00 423.60 40.00 27.00 477.0 3.60 70.0 TOGT 12..
GD-DH 28.00-25D-M40-12 28.00 703.60 40.00 27.00 757.0 3.60 70.0 TOGT 12..
GD-DH 29.00-10D-M40-13 29.00 294.57 40.00 27.00 360.0 4.57 69.0 TOGT 13..
GD-DH 29.00-20D-M40-13 29.00 584.57 40.00 27.00 650.0 4.57 69.0 TOGT 13..
GD-DH 30.00-10D-M40-13 30.00 314.57 40.00 29.00 383.0 4.57 69.0 TOGT 13..
• Note: Gundrills can be supplied with up to 2400 mm length on request. • Inserts and guide pads should be ordered separately (they are not included with the tools).
• For user guide and cutting conditions, see pages 289-292 • Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole.
Enter the guide hole slowly at a speed of 50 - 100 rpm.
For inserts, see pages: TOGT-DT (194) • TOGT-GF (194)

285
