P. 292

USER GUIDE

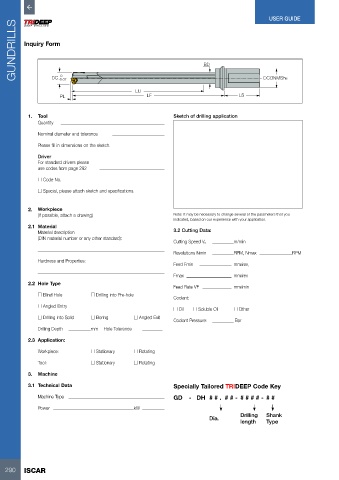

      GUNDRILLS  Inquiry Form                                            BD










                       0
                   DC
                           -0.07
                                                 LU                                           DCONMSh6
                      PL                             LF                              LS



           1.  Tool                                           Sketch of drilling application
              Quantity

              Nominal diameter and tolerance
              Please fill in dimensions on the sketch.

              Driver
              For standard drivers please
              use codes from page 292

              o Code No.
              o Special, please attach sketch and specifications.


           2.  Workpiece
              (If possible, attach a drawing)                 Note: It may be necessary to change several of the parameters that you
                                                              indicated, based on our experience with your application.
           2.1 Material
              Material description                            3.2 Cutting Data:
              (DIN material number or any other standard):
                                                              Cutting Speed Vc     m/min
                                                              Revolutions Nmin     RPM, Nmax            RPM
              Hardness and Properties:
                                                              Feed Fmin            mm/rev,

                                                              Fmax                 mm/rev
           2.2 Hole Type
                                                              Feed Rate VF         mm/min
              o Blind Hole       o Drilling into Pre-hole
                                                              Coolant:
              o Angled Entry
                                                              o Oil  o Soluble Oil  o Other
              o Drilling into Solid  o Boring   o Angled Exit
                                                              Coolant Pressure:     Bar
              Drilling Depth     mm  Hole Tolerance

           2.3 Application:
              Workpiece:         o Stationary   o Rotating

              Tool:              o Stationary   o Rotating
           3.  Machine

           3.1 Technical Data                                 Specially Tailored TRIDEEP Code Key
              Machine Type                                    GD   - DH # # . # # - # # # # - # #

              Power                             kW
                                                                                     Drilling   Shank
                                                                           Dia.
                                                                                     length    Type
