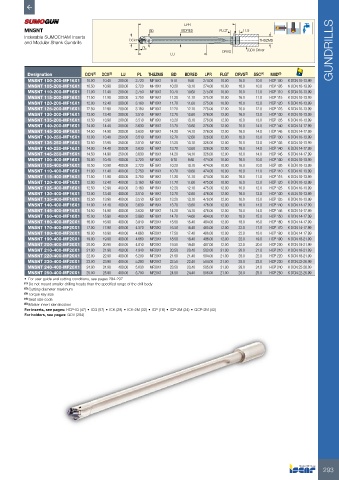

P. 295
LPR
MNSNT BD BDRED FLGT 11.5
Indexable SUMOCHAM Inserts DCk7
and Modular Shank Gundrills THSZMS
PL
DRVS GDV Driver GUNDRILLS
LU
Designation DCN (1) DCX (2) LU PL THSZMS BD BDRED LPR FLGT DRVS (3) SSC (4) MIID (5)
MNSNT 100-200-MF16X1 10.00 10.40 200.00 2.720 MF16X1 9.70 9.60 274.00 10.00 16.0 10.0 HCP 100 K DCN 10-13.99
MNSNT 105-200-MF16X1 10.50 10.90 200.00 2.720 MF16X1 10.20 10.10 274.00 10.00 16.0 10.0 HCP 105 K DCN 10-13.99
MNSNT 110-200-MF16X1 11.00 11.40 200.00 2.750 MF16X1 10.70 10.60 275.00 10.00 16.0 11.0 HCP 110 K DCN 10-13.99
MNSNT 115-200-MF16X1 11.50 11.90 200.00 2.750 MF16X1 11.20 11.10 275.00 10.00 16.0 11.0 HCP 115 K DCN 10-13.99
MNSNT 120-200-MF16X1 12.00 12.40 200.00 3.160 MF16X1 11.70 11.60 275.00 10.00 16.0 12.0 HCP 120 K DCN 10-13.99
MNSNT 125-200-MF16X1 12.50 12.90 200.00 3.160 MF16X1 12.20 12.10 275.00 12.00 16.0 12.0 HCP 125 K DCN 10-13.99
MNSNT 130-200-MF16X1 13.00 13.40 200.00 3.510 MF16X1 12.70 12.60 276.00 12.00 16.0 13.0 HCP 130 K DCN 10-13.99
MNSNT 135-200-MF16X1 13.50 13.90 200.00 3.510 MF16X1 13.20 13.10 276.00 12.00 16.0 13.0 HCP 135 K DCN 10-13.99
MNSNT 140-200-MF16X1 14.00 14.40 200.00 3.630 MF16X1 13.70 13.60 276.00 12.00 16.0 14.0 HCP 140 K DCN 14-17.99
MNSNT 145-200-MF16X1 14.50 14.90 200.00 3.630 MF16X1 14.20 14.10 276.00 12.00 16.0 14.0 HCP 145 K DCN 14-17.99
MNSNT 130-250-MF16X1 13.00 13.40 250.00 3.510 MF16X1 12.70 12.60 326.00 12.00 16.0 13.0 HCP 130 K DCN 10-13.99
MNSNT 135-250-MF16X1 13.50 13.90 250.00 3.510 MF16X1 13.20 13.10 326.00 12.00 16.0 13.0 HCP 135 K DCN 10-13.99
MNSNT 140-250-MF16X1 14.00 14.40 250.00 3.630 MF16X1 13.70 13.60 326.00 12.00 16.0 14.0 HCP 140 K DCN 14-17.99
MNSNT 145-250-MF16X1 14.50 14.90 250.00 3.630 MF16X1 14.20 14.10 326.00 12.00 18.0 14.0 HCP 145 K DCN 14-17.99
MNSNT 100-400-MF16X1 10.00 10.40 400.00 2.720 MF16X1 9.70 9.60 474.00 10.00 16.0 10.0 HCP 100 K DCN 10-13.99
MNSNT 105-400-MF16X1 10.50 10.90 400.00 2.720 MF16X1 10.20 10.10 474.00 10.00 16.0 10.0 HCP 105 K DCN 10-13.99
MNSNT 110-400-MF16X1 11.00 11.40 400.00 2.750 MF16X1 10.70 10.60 474.00 10.00 16.0 11.0 HCP 110 K DCN 10-13.99
MNSNT 115-400-MF16X1 11.50 11.90 400.00 2.750 MF16X1 11.20 11.10 474.00 10.00 16.0 11.0 HCP 115 K DCN 10-13.99
MNSNT 120-400-MF16X1 12.00 12.40 400.00 3.160 MF16X1 11.70 11.60 475.00 10.00 16.0 12.0 HCP 120 K DCN 10-13.99
MNSNT 125-400-MF16X1 12.50 12.90 400.00 3.160 MF16X1 12.20 12.10 475.00 12.00 16.0 12.0 HCP 125 K DCN 10-13.99
MNSNT 130-400-MF16X1 13.00 13.40 400.00 3.510 MF16X1 12.70 12.60 476.00 12.00 16.0 13.0 HCP 130 K DCN 10-13.99
MNSNT 135-400-MF16X1 13.50 13.90 400.00 3.510 MF16X1 13.20 13.10 476.00 12.00 16.0 13.0 HCP 135 K DCN 10-13.99
MNSNT 140-400-MF16X1 14.00 14.40 400.00 3.630 MF16X1 13.70 13.60 476.00 12.00 16.0 14.0 HCP 140 K DCN 14-17.99
MNSNT 145-400-MF16X1 14.50 14.90 400.00 3.630 MF16X1 14.20 14.10 476.00 12.00 18.0 14.0 HCP 145 K DCN 14-17.99
MNSNT 150-400-MF16X1 15.00 15.90 400.00 3.880 MF16X1 14.70 14.60 484.00 12.00 18.0 15.0 HCP 150 K DCN 14-17.99
MNSNT 160-400-MF20X1 16.00 16.90 400.00 3.910 MF20X1 15.50 15.40 484.00 12.00 18.0 16.0 HCP 160 K DCN 14-17.99
MNSNT 170-400-MF20X1 17.00 17.90 400.00 4.570 MF20X1 16.50 16.40 485.00 12.00 22.0 17.0 HCP 170 K DCN 14-17.99
MNSNT 180-400-MF20X1 18.00 18.90 400.00 4.660 MF20X1 17.50 17.40 486.00 12.00 22.0 18.0 HCP 180 K DCN 14-17.99
MNSNT 190-400-MF20X1 19.00 19.90 400.00 4.660 MF20X1 18.50 18.40 486.00 12.00 22.0 19.0 HCP 190 K DCN 18-21.99
MNSNT 200-400-MF20X1 20.00 20.90 400.00 4.810 MF20X1 19.50 19.40 487.00 12.00 22.0 20.0 HCP 200 K DCN 18-21.99
MNSNT 210-400-MF20X1 21.00 21.90 400.00 4.940 MF20X1 20.50 20.40 503.00 21.00 28.0 21.0 HCP 210 K DCN 18-21.99
MNSNT 220-400-MF20X1 22.00 22.90 400.00 5.200 MF20X1 21.50 21.40 504.00 21.00 28.0 22.0 HCP 220 K DCN 18-21.99
MNSNT 230-400-MF20X1 23.00 23.90 400.00 5.280 MF20X1 22.50 22.40 504.00 21.00 28.0 23.0 HCP 230 K DCN 22-26.99
MNSNT 240-400-MF20X1 24.00 24.90 400.00 5.630 MF20X1 23.50 23.40 505.00 21.00 28.0 24.0 HCP 240 K DCN 22-26.99
MNSNT 250-400-MF20X1 25.00 25.90 400.00 5.700 MF20X1 24.50 24.40 506.00 21.00 28.0 25.0 HCP 250 K DCN 22-26.99
• For user guide and cutting conditions, see pages 294-297
(1) Do not mount smaller drilling heads than the specified range of the drill body
(2) Cutting diameter maximum
(3) Torque key size
(4) Seat size code
(5) Master insert identification
For inserts, see pages: HCP-IQ (47) • ICG (57) • ICK (28) • ICK-2M (32) • ICP (18) • ICP-2M (24) • QCP-2M (43)
For holders, see pages: GDV (294)
