USER GUIDE

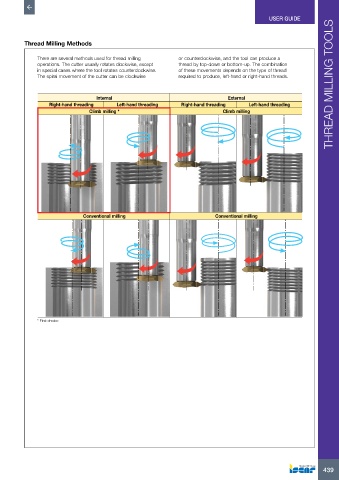

          Thread Milling Methods

              There are several methods used for thread milling   or counterclockwise, and the tool can produce a
              operations. The cutter usually rotates clockwise, except   thread by top-down or bottom-up. The combination
              in special cases where the tool rotates counterclockwise.   of these movements depends on the type of thread
              The spiral movement of the cutter can be clockwise   required to produce, left-hand or right-hand threads.   THREAD MILLING TOOLS



                                   Internal                                      External
                  Right-hand threading    Left-hand threading    Right-hand threading   Left-hand threading
                                Climb milling *                                Climb milling





















                              Conventional milling                           Conventional milling





















              * First choice
