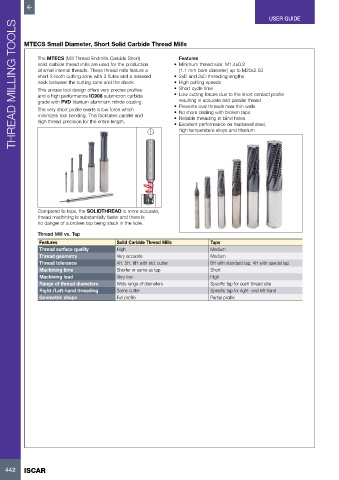

USER GUIDE
THREAD MILLING TOOLS

MTECS Small Diameter, Short Solid Carbide Thread Mills

The MTECS (Mill Thread Endmills Carbide Short) Features
solid carbide thread mills are used for the production • Minimum thread size: M1.4x0.3
of small internal threads. These thread mills feature a (1.1 mm bore diameter) up to M20x2.50
short 3-tooth cutting zone with 3 flutes and a released • 2xD and 3xD threading lengths
neck between the cutting zone and the shank. • High cutting speeds
This unique tool design offers very precise profiles • Short cycle time
and a high performance IC908 submicron carbide • Low cutting forces due to the short contact profile
grade with PVD titanium aluminum nitride coating. resulting in accurate and parallel thread
The very short profile exerts a low force which • Prevents oval threads near thin walls
• No more dealing with broken taps
minimizes tool bending. This facilitates parallel and • Reliable threading in blind holes
high thread precision for the entire length.
• Excellent performance on hardened steel,
high temperature alloys and titanium

Compared to taps, the SOLIDTHREAD is more accurate,
thread machining is substantially faster and there is
no danger of a broken tap being stuck in the hole.

Thread Mill vs. Tap
Features Solid Carbide Thread Mills Taps
Thread surface quality High Medium
Thread geometry Very accurate Medium
Thread tolerance 4H, 5H, 6H with std. cutter 6H with standard tap, 4H with special tap
Machining time Shorter or same as tap Short
Machining load Very low High
Range of thread diameters Wide range of diameters Specific tap for each thread size
Right-/Left-hand threading Same cutter Specific tap for right- and left-hand
Geometric shape Full profile Partial profile
