USER GUIDE
      THREAD MILLING TOOLS

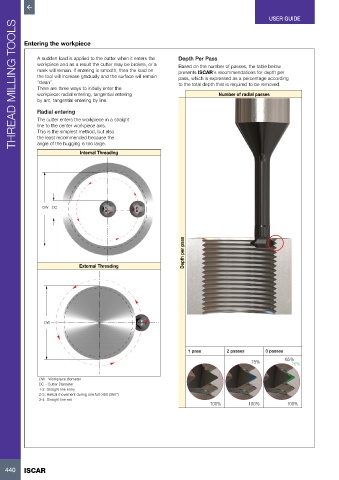

          Entering the workpiece

              A sudden load is applied to the cutter when it enters the   Depth Per Pass
              workpiece and as a result the cutter may be broken, or a   Based on the number of passes, the table below
              mark will remain. If entering is smooth, then the load on   presents ISCAR's recommendations for depth per
              the tool will increase gradually and the surface will remain   pass, which is expressed as a percentage according
              “clean”.                                          to the total depth that is required to be removed.
              There are three ways to initially enter the
              workpiece: radial entering, tangential entering                 Number of radial passes
              by arc, tangential entering by line.

              Radial entering
              The cutter enters the workpiece in a straight
              line to the center workpiece axis.
              This is the simplest method, but also
              the least recommended because the
              angle of the hugging is too large.
                             Internal Threading










                DW  DC                1          2
                                      4          3




                                                                  Depth per pass




                             External Threading










                 DW                               2 3                    1 4

                                                                        DC

                                                                   1 pass        2 passes     3 passes

                                                                                         75%         65% 75%


               DW - Workpiece diameter
               DC - Cutter Diameter
               1-2: Straight line entry
               2-3: Helical movement during one full orbit (360°)
               3-4: Straight line exit
                                                                           100%         100%          100%
