USER GUIDE

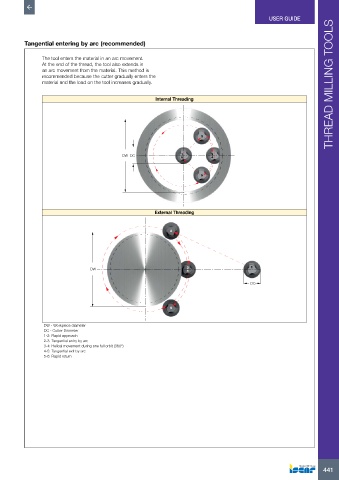

          Tangential entering by arc (recommended)

                The tool enters the material in an arc movement.
                At the end of the thread, the tool also extends in
                an arc movement from the material. This method is
                recommended because the cutter gradually enters the
                material and the load on the tool increases gradually.                                                THREAD MILLING TOOLS


                                                        Internal Threading







                                                                        2


                                            DW  DC               1         3
                                                                 6         4

                                                                        5






                                                       External Threading


                                                             2






                                 DW                                3 4                   1


                                                                                         DC



                                                             5


                DW - Workpiece diameter
                DC - Cutter Diameter
                1-2: Rapid approach
                2-3: Tangential entry by arc
                3-4: Helical movement during one full orbit (360°)
                4-5: Tangential exit by arc
                5-6: Rapid return
