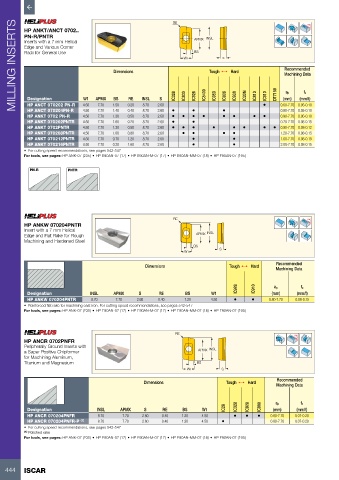

Page 446 - ISCAR(MILLINGCATALOG 38_2021)

MILLING INSERTS HP ANKT/ANCT 0702.. Dimensions RE W1 APMX lNSL S Machining Data
Rd°
PN-R/PNTR
Inserts with a 7 mm Helical
Edge and Various Corner
BS
Radii for General Use
Recommended
Tough 1 Hard

fz
ap
RE
BS
Designation
(mm)
S
(mm/t)
HP ANCT 070202 PN-R
8.70
7.70
4.50
1.40
HP ANCT 070204PN-R
7.70
0.80-7.70 0.05-0.10
4.50
2.60
8.70
0.40
•
•
•
•
HP ANKT 0702 PN-R W1 APMX 1.50 0.20 INSL 2.60 • IC328 • IC830 • IC928 • IC5400 IC950 • IC808 • IC908 IC30N • IC810 • IC910 DT7150 0.60-7.70 0.05-0.10
7.70
4.50
1.30
2.60
8.70
0.50
0.90-7.70 0.06-0.10
HP ANKT 070202PNTR 4.50 7.70 1.60 0.20 8.70 2.60 • • 0.70-7.70 0.08-0.15
HP ANKT 0702PNTR 4.50 7.70 1.30 0.50 8.70 2.60 • • • • • • • • 0.90-7.70 0.08-0.12
HP ANKT 070208PNTR 4.50 7.70 1.00 0.80 8.70 2.60 • • • • 1.20-7.70 0.08-0.15
HP ANKT 070212PNTR 4.50 7.70 0.70 1.20 8.70 2.60 • • 1.60-7.70 0.08-0.15
HP ANKT 070216PNTR 4.50 7.70 0.20 1.60 8.70 2.60 • • 2.00-7.70 0.08-0.15
• For cutting speed recommendations, see pages 542-547
For tools, see pages: HP ANK-07 (235) • HP E90AN-07 (17) • HP E90AN-M-07 (17) • HP E90AN-MM-07 (18) • HP F90AN-07 (195)
PN-R PNTR

RE Rd°
HP ANKW 070204PNTR
Insert with a 7 mm Helical lNSL
Edge and Flat Rake for Rough APMX
Machining and Hardened Steel
BS
S
W1
Recommended
Dimensions Tough 1 Hard Machining Data
IC928 IC910 ap fz
Designation INSL APMX S RE BS W1 (mm) (mm/t)
HP ANKW 070204PNTR 8.70 7.70 2.60 0.40 1.20 4.50 • • 0.80-7.70 0.08-0.15
• Reinforced flat rake for machining cast iron. For cutting speed recommendations, see pages 542-547
For tools, see pages: HP ANK-07 (235) • HP E90AN-07 (17) • HP E90AN-M-07 (17) • HP E90AN-MM-07 (18) • HP F90AN-07 (195)

RE Rd°
HP ANCR 0702PNFR
Peripherally Ground Inserts with lNSL
a Super Positive Chipformer APMX
for Machining Aluminum,
Titanium and Magnesium BS
W1 S
Recommended
Dimensions Tough 1 Hard
Machining Data
ap
fz
Designation INSL APMX S RE BS W1 IC28 IC328 IC928 IC908 (mm) (mm/t)
HP ANCR 070204PNFR 8.70 7.70 2.60 0.40 1.20 4.50 • • • 0.80-7.70 0.07-0.20
HP ANCR 070204PNFR-P (1) 8.70 7.70 2.60 0.40 1.20 4.50 • 0.80-7.70 0.07-0.20
• For cutting speed recommendations, see pages 542-547
(1) Polished rake
For tools, see pages: HP ANK-07 (235) • HP E90AN-07 (17) • HP E90AN-M-07 (17) • HP E90AN-MM-07 (18) • HP F90AN-07 (195)

444 ISCAR
