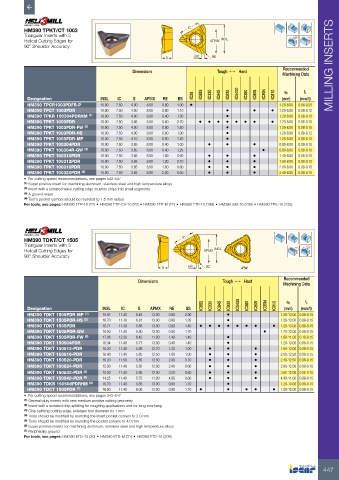

Page 449 - ISCAR(MILLINGCATALOG 38_2021)
P. 449

HM390 TPKT/CT 1003                                       IC
          Triangular Inserts with 3                                                                          Rd°
          Helical Cutting Edges for                                        APMX  INSL
          90° Shoulder Accuracy
                                                           S         BS    RE

                                                Dimensions                   Tough 1   Hard         Recommended       MILLING INSERTS
                                                                                                    Machining Data


                                                                     IC28  IC882  IC330  IC845  IC830  IC5400  IC380  IC808  IC30N  IC810  ap  fz
           Designation              INSL  IC    S   APMX  RE   BS                                   (mm)  (mm/t)
           HM390 TPCR1003PDFR-P     10.90  7.50  4.00  8.00  0.80  1.00  •                         1.20-8.00  0.08-0.25
           HM390 TPCT 1003PDR       10.90  7.50  4.00  8.00  0.80  1.10         •         •     •  1.20-8.00  0.08-0.12
           HM390 TPKR 100304PDRHM  (1)  10.90  7.50  4.00  8.00  0.40  1.50     •                  1.20-8.00  0.08-0.15
           HM390 TPKT 1003PDR       10.90  7.50  3.85  8.00  0.80  0.70  •  •  •  •  •  •  •    •  1.20-8.00  0.08-0.15
           HM390 TPKT 1003PDR-FW  (2)  10.90  7.50  4.00  8.00  0.80  1.50      •                  1.20-8.00  0.08-0.15
           HM390 TPKT 1003PDR-HS    10.90  7.50  4.00  8.00  0.80  1.00         •                  1.20-8.00  0.08-0.12
           HM390 TPKT 1003PDR-MP    10.90  7.50  4.10  8.00  0.80  1.20         •                  1.20-8.00  0.08-0.12
           HM390 TPKT 100304PDR     10.90  7.50  3.85  8.00  0.40  1.00   •     •         •        0.80-8.00  0.08-0.15
           HM390 TPKT 100304R-GW  (3)  10.90  7.50  3.85  8.00  0.40  1.25                   •     0.80-8.00  0.08-0.15
           HM390 TPKT 100310PDR     10.90  7.50  3.85  8.00  1.00  0.90   •     •         •        1.40-8.00  0.08-0.15
           HM390 TPKT 100312PDR     10.90  7.50  3.85  8.00  1.20  0.70   •     •         •        1.60-8.00  0.08-0.15
           HM390 TPKT 100316PDR     10.90  7.50  3.85  8.00  1.60  0.60   •     •         •        2.00-8.00  0.08-0.15
           HM390 TPKT 100320PDR  (4)  10.90  7.50  3.85  8.00  2.00  0.60  •    •         •        2.40-8.00  0.08-0.15
          •  For cutting speed recommendations, see pages 542-547
          (1)  Super positive insert for machining aluminum, stainless steel and high temperature alloys
          (2)  Insert with a serrated wavy cutting edge crushes chips into small segments
          (3)  A ground wiper
          (4)  Tool's pocket corners should be rounded to 1.5 mm radius
          For tools, see pages: HM390 ETP-10 (22) • HM390 ETP-C#-10 (23) • HM390 ETP-M (22) • HM390 FTP-10 (199) • HM390 SM-10 (236) • HM390 TPK-10 (235)




          HM390 TDKT/CT 1505                                     IC
          Triangular Inserts with 3                                                                      Rd°
          Helical Cutting Edges for                                      APMX  INSL
          90° Shoulder Accuracy
                                                          S        BS    RE           -FW
                                                                                                     Recommended
                                                  Dimensions                   Tough 1   Hard
                                                                                                     Machining Data


                                                                        IC882  IC330  IC845  IC830  IC5400  IC380  IC808  IC30N  IC810  ap  fz
           Designation               INSL   IC   S    APMX   RE   BS                                 (mm)  (mm/t)
           HM390 TDKT 1505PDR-MP  (1)  15.97  11.40  6.45  13.00  0.80  2.90     •                  1.20-13.00 0.08-0.15
           HM390 TDKT 1505PDR-HS  (2)  16.70  11.40  6.24  13.00  0.80  1.35     •                  1.20-13.00 0.08-0.15
           HM390 TDKT 1505PDR        16.71  11.39  5.85  13.00  0.80  1.40  •  •  •  •  •  •  •  •  1.20-13.00 0.08-0.15
           HM390 TDKT 1505PDR-GW     16.50  11.40  5.80  13.00  0.80  1.70                    •     1.20-13.00 0.08-0.15
           HM390 TDKT 1505PDR-FW  (3)  17.06  12.30  6.42  11.00  1.40  1.40     •                  1.80-11.00 0.10-0.15
           HM390 TDKT 150504PDR      16.34  11.40  5.77  13.00  0.40  1.40       •                  1.20-13.00 0.08-0.15
           HM390 TDKT 150512-PDR     16.20  11.40  5.85  12.70  1.20  1.00  •    •        •         1.60-13.00 0.08-0.15
           HM390 TDKT 150516-PDR     16.40  11.40  5.85  12.50  1.60  1.00  •    •        •         2.00-12.50 0.08-0.15
           HM390 TDKT 150520-PDR     16.20  11.50  5.85  12.50  2.00  0.70  •    •        •         2.40-12.50 0.08-0.15
           HM390 TDKT 150524-PDR     15.90  11.40  5.85  12.00  2.40  0.60  •    •        •         2.80-12.00 0.08-0.15
           HM390 TDKT 150532-PDR  (4)  15.20  11.40  5.85  12.00  3.20  0.60  •  •        •         3.60-12.00 0.08-0.15
           HM390 TDKT 150540-PDR  (5)  14.25  11.40  5.75  11.00  4.00  0.60  •  •        •         4.40-11.00 0.08-0.15
           HM390 TDKR 150508PDRHM  (6)  16.70  11.40  5.85  13.00  0.80  1.70    •                  1.20-13.00 0.08-0.15
           HM390 TDCT 1505PDR  (7)   16.80  11.40  6.08  12.00  0.80  1.70  •    •     •  •      •  1.20-12.00 0.08-0.15
          •  For cutting speed recommendations, see pages 542-547
          (1)  General-duty inserts with new medium positive cutting geometry
          (2)  Insert with a serrated chip splitting for roughing applications and for long overhang
          (3)  Chip splitting cutting edge, enlarges tool diameter by 1 mm
          (4)  Tools should be modified by rounding the insert pocket corners to 2.0 mm
          (5)  Tools should be modified by rounding the pocket corners to 4.0 mm
          (6)  Super positive inserts for machining aluminum, stainless steel and high temperature alloys
          (7)  Peripherally ground
          For tools, see pages: HM390 ETD-15 (30) • HM390 ETD-M (31) • HM390 FTD-15 (209)




                                                                                                                   447
