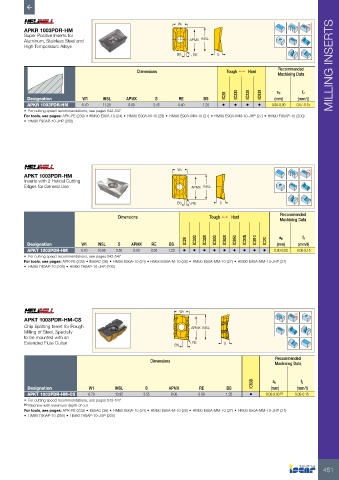

P. 453

W1                                           Rd°
          APKR 1003PDR-HM
          Super Positive Inserts for
          Aluminum, Stainless Steel and                             APMX INSL
          High Temperature Alloys
                                                               BS    RE      S


                                                 Dimensions                      Tough 1   Hard    Recommended        MILLING INSERTS
                                                                                                   Machining Data


                                                                                IC28  IC330  IC328  IC928  ap  fz
           Designation        W1     INSL    APMX       S       RE       BS                      (mm)     (mm/t)
           APKR 1003PDR-HM    6.70   11.20    8.00     3.76     0.50    1.20   •   •   •    •   0.90-8.00  0.07-0.15
          •  For cutting speed recommendations, see pages 542-547
          For tools, see pages: APK-FE (239) • HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27) • HM90 F90AP-10 (200)
          •  HM90 F90AP-10-JHP (200)






                                                               W1                                            Rd°

          APKT 1003PDR-HM
          Inserts with 2 Helical Cutting
          Edges for General Use                                     APMX INSL


                                                               BS   RE        S
                                                                                                   Recommended
                                          Dimensions                       Tough 1   Hard
                                                                                                   Machining Data


                                                                                                           fz
                                                                                                   ap
           Designation        W1   INSL   S    APMX   RE    BS    IC28  IC330  IC328  IC830  IC928  IC950  IC30N  IC910  IC20  (mm)  (mm/t)
           APKT 1003PDR-HM    6.70  10.95  3.55  8.00  0.50  1.20  •  •  •  •  •   •  •   •  •   0.90-8.00  0.08-0.15
          •  For cutting speed recommendations, see pages 542-547
          For tools, see pages: APK-FE (239) • E90AC (36) • HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27)
          •  HM90 F90AP-10 (200) • HM90 F90AP-10-JHP (200)






                                                                W1                                       Rd°
          APKT 1003PDR-HM-CS
          Chip Splitting Insert for Rough                           APMX  INSL
          Milling of Steel, Specially
          to be mounted with an
          Extended Flute Cutter                               BS    RE          S


                                                                                                  Recommended
                                                      Dimensions                                  Machining Data


                                                                                          IC830  ap        fz
           Designation          W1       INSL       S       APMX       RE        BS              (mm)     (mm/t)
           APKT 1003PDR-HM-CS   6.70     10.95     3.55      8.00      0.80     1.20     •    8.00-8.00  (1)  0.08-0.15
          •  For cutting speed recommendations, see pages 542-547
          (1)  Machine with maximum depth of cut
          For tools, see pages: APK-FE (239) • E90AC (36) • HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27)
          •  HM90 F90AP-10 (200) • HM90 F90AP-10-JHP (200)
