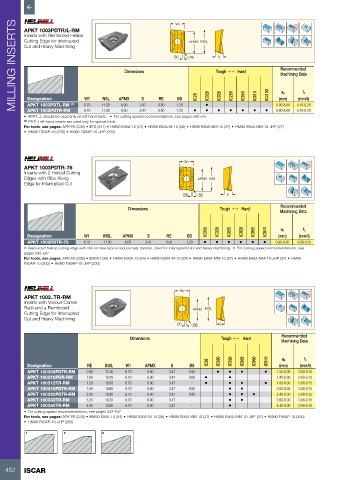

P. 454

MILLING INSERTS    APKT 1003PDTR/L-RM  Dimensions       BS   APMX INSL  Tough 1   Hard       Machining Data
                                                               W1
                                                                                                        Rd°
          Inserts with Reinforced Helical

          Cutting Edge for Interrupted
          Cut and Heavy Machining
                                                                              S
                                                                    RE
                                                                                                    Recommended




                                                                                                    ap
                                                                                                           fz
                                                                      IC28
           Designation
                                                               BS
                                                         RE
                                           APMX
                                     INSL
                               W1
                                                   S
                                                                                                          (mm/t)
                                                                                                   (mm)
                                                  3.47
                                                         0.50
           APKT 1003PDTL-RM
                               6.70
                          (1)
                                            8.00
                                     11.00
                                                               1.20
                                                                     •
                                                                         •
                                                               1.20
                                                                                                         0.10-0.20
                               6.70
                                     11.00
                                            8.00
           APKT 1003PDTR-RM
                                                                                                  0.90-8.00
                                                  3.47
                                                         0.50
          •  APKT...L should be used only on left-hand tools.   •  For cutting speed recommendations, see pages 542-547 • IC328  • IC928  • IC250  • IC950  • IC910  • IC4100  0.90-8.00  0.10-0.20
          (1)  PDTL-Left-hand inserts are used only for special tools.
          For tools, see pages: APK-FE (239) • ETS (341) • HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27)
          •  HM90 F90AP-10 (200) • HM90 F90AP-10-JHP (200)

                                                                  W1                                         Rd°
          APKT 1003PDTR-76
          Inserts with 2 Helical Cutting
          Edges with Ribs Along                                       APMX INSL
          Edge for Interrupted Cut
                                                                 BS    RE        S
                                                                                                    Recommended
                                              Dimensions                      Tough 1   Hard
                                                                                                   Machining Data
                                                                          IC330  IC328  IC830  IC928  IC950  IC910  ap  fz
           Designation         W1    INSL   APMX     S      RE     BS                              (mm)   (mm/t)
           APKT 1003PDTR-76   6.70   11.00   8.00   3.47   0.50    1.20  •   •   •   •   •   •    0.90-8.00  0.08-0.15
          •  Reinforced helical cutting edge with ribs on rake face to reduce heat transfer. Used for interrupted cuts and heavy machining   •  For cutting speed recommendations, see
          pages 542-547
          For tools, see pages: APK-FE (239) • E90AC (36) • HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27) • HM90
          F90AP-10 (200) • HM90 F90AP-10-JHP (200)

                                                                W1                                           Rd°
          APKT 1003..TR-RM
          Inserts with Various Corner
          Radii and a Reinforced                                     APMX INSL
          Cutting Edge for Interrupted
          Cut and Heavy Machining
                                                               BS    RE       S
                                               Dimensions                      Tough 1   Hard       Recommended
                                                                                                    Machining Data
                                                                          IC28  IC330  IC328  IC928  IC950  IC910  ap  fz
           Designation          RE    INSL   W1     APMX     S      BS                             (mm)   (mm/t)
           APKT 100308PDTR-RM  0.80   11.00  6.70    8.00   3.47   0.90      •   •   •        •   1.20-8.00  0.08-0.15
           APKT 100310PDR-RM   1.00   10.75  6.70    8.00   3.47   0.60  •       •                1.40-8.00  0.08-0.15
           APKT 100312TR-RM    1.20   10.50  6.70    8.00   3.47    -    •       •   •        •   1.60-8.00  0.08-0.15
           APKT 100316PDTR-RM  1.60   10.90  6.70    8.00   3.47   0.80          •   •            2.00-8.00  0.08-0.15
           APKT 100320PDTR-RM  2.00   10.90  6.70    8.00   3.47   0.80          •   •    •       2.40-8.00  0.08-0.15
           APKT 100332TR-RM    3.20   10.70  6.70    8.00   3.47    -            •   •            3.60-8.00  0.08-0.15
           APKT 100340TR-RM    4.00   10.55  6.70    8.00   3.47    -            •                4.40-8.00  0.08-0.15
          •  For cutting speed recommendations, see pages 542-547
          For tools, see pages: APK-FE (239) • HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27) • HM90 F90AP-10 (200)
          •  HM90 F90AP-10-JHP (200)
          1            2             3
