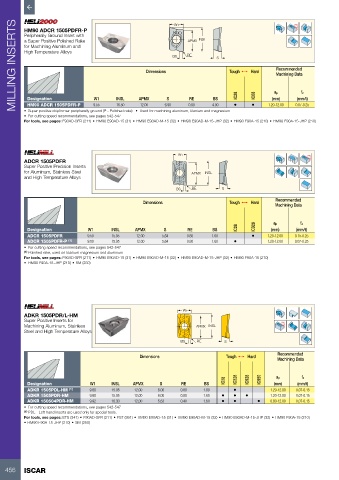

P. 458

MILLING INSERTS  HM90 ADCR 1505PDFR-P         Dimensions  BS  RE  INSL  S   Tough 1   Hard  Recommended
                                                              W1
                                                                                                        Rd°
          Peripherally Ground Insert with
          a Super Positive Polished Rake
                                                                   APMX
          for Machining Aluminum and
          High Temperature Alloys


                                                                                                  Machining Data


                                                                                                 ap
                                                                                                           fz
                                                                                                         (mm/t)
           Designation
                                                                                                (mm)
                                                                   RE
                                                                            BS
                                  W1
                                          INSL
                                                            S
                                          16.50
           HM90 ADCR 1505PDFR-P
                                  9.55
                                                  12.00
          •  Super positive chipformer peripherally ground (P - Polished rake)   •  Used for machining aluminum, titanium and magnesium
          •  For cutting speed recommendations, see pages 542-547  APMX  6.90  0.80  4.00  • IC28  • IC08  1.20-12.00  0.07-0.25
          For tools, see pages: F90AD-SFR (211) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210) • HM90 F90A-15-JHP (210)

                                                                W1                                           Rd°
          ADCR 1505PDFR
          Super Positive Precision Inserts
          for Aluminum, Stainless Steel                             APMX  INSL
          and High Temperature Alloys
                                                               BS   RE         S
                                                                                                  Recommended
                                                   Dimensions                     Tough 1   Hard
                                                                                                  Machining Data

                                                                                                 ap
                                                                                                           fz
           Designation          W1      INSL    APMX       S       RE       BS      IC28  IC928  (mm)    (mm/t)
           ADCR 1505PDFR        9.50    15.95    12.00    5.64     0.80    1.60          •     1.20-12.00  0.15-0.25
           ADCR 1505PDFR-P  (1)  9.50   15.95    12.00    5.64     0.80    1.60    •           1.20-12.00  0.07-0.25
          •  For cutting speed recommendations, see pages 542-547
          (1)  Polished rake, used on titanium magnesium and aluminum
          For tools, see pages: F90AD-SFR (211) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210)
          •  HM90 F90A-15-JHP (210) • SM (250)







          ADKR 1505PDR/L-HM                                      W1
          Super Positive Inserts for                                                                Rd°
          Machining Aluminum, Stainless                               APMX  INSL
          Steel and High Temperature Alloys
                                                                BS    RE        S

                                                                                                   Recommended
                                                  Dimensions                    Tough 1   Hard
                                                                                                  Machining Data


                                                                                IC28  IC328  IC928  IC950  ap  fz
           Designation           W1     INSL    APMX     S       RE      BS                      (mm)    (mm/t)
           ADKR 1505PDL-HM  (1)  9.60   15.95   12.00   6.00    0.80    1.60       •            1.20-12.00  0.07-0.15
           ADKR 1505PDR-HM       9.60   15.95   12.00   6.00    0.80    1.60   •   •   •        1.20-12.00  0.07-0.15
           ADKR 150504PDR-HM     9.92   16.30   12.00   5.63    0.40    1.60   •   •       •    0.80-12.00  0.07-0.15
          •  For cutting speed recommendations, see pages 542-547
          (1)  PDL - Left-hand inserts are used only for special tools.
          For tools, see pages: ETS (341) • F90AD-SFR (211) • FST (361) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210)
          • HM90 F90A-15-JHP (210) • SM (250)
