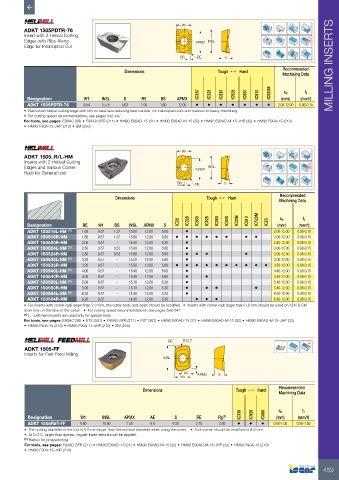

Page 461 - ISCAR(MILLINGCATALOG 38_2021)
P. 461

ADKT 1505PDTR-76                                       W1
            Insert with 2 Helical Cutting
          Edges with Ribs Along                                       APMX  INSL                             Rd°
          Edge for Interrupted Cut

                                                                BS    RE        S

                                             Dimensions                       Tough 1   Hard        Recommended       MILLING INSERTS
                                                                                                    Machining Data


                                                                       IC330  IC328  IC830  IC928  IC950  IC910  IC520M  ap  fz
           Designation         W1    INSL   S      RE    BS    APMX                                 (mm)   (mm/t)
           ADKT 1505PDTR-76   9.54   15.75  5.63   1.00  1.60   12.00  •  •   •   •   •    •   •   2.00-12.00  0.08-0.15
          •  Reinforced helical cutting edge with ribs on rake face reducing heat transfer, for interrupted cuts and medium to heavy machining.
          •  For cutting speed recommendations, see pages 542-547
          For tools, see pages: E90AC (36) • F90AD-SFR (211) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210)
          •  HM90 F90A-15-JHP (210) • SM (250)

                                                                 W1

          ADKT 1505..R/L-HM
          Inserts with 2 Helical Cutting                                                                     Rd°
          Edges and Various Corner                                    APMX  INSL
          Radii for General Use

                                                               BS     RE        S
                                                                                                   Recommended
                                         Dimensions                       Tough 1   Hard
                                                                                                   Machining Data


                                                                IC28  IC328  IC830  IC928  IC950  IC908  IC30N  IC910  IC520M  IC20  ap  fz
           Designation        RE    W1   BS   INSL  APMX   S                                      (mm)    (mm/t)
           ADKT 150516L-HM  (1)  1.60  9.57  1.37  15.60  12.00  5.60  •                         2.00-12.00  0.08-0.15
           ADKT 150516R-HM    1.60  9.57  1.37  15.60  12.00  5.60  •  •  •  •  •  •   •  •      2.00-12.00  0.08-0.15
           ADKT 150520R-HM    2.00  9.57  -   14.80  12.00  5.20  •                              2.40-12.00  0.08-0.15
           ADKT 150524L-HM  (1)  2.50  9.57  0.52  15.60  12.00  5.60  •                         3.00-12.00  0.08-0.15
           ADKT 150524R-HM    2.50  9.57  0.52  15.60  12.00  5.60  •  •  •            •         3.00-12.00  0.08-0.15
           ADKT 150532L-HM  (1)  3.20  9.57  -  15.50  12.00  5.60  •                            3.00-12.00  0.08-0.15
           ADKT 150532R-HM    3.20  9.57  -   15.50  12.00  5.60  •  •  •  •  •  •  •  •  •   •  3.50-12.00  0.08-0.15
           ADKT 150540L-HM  (1)  4.00  9.57  -  15.40  12.00  5.60  •                            4.40-12.00  0.08-0.15
           ADKT 150540R-HM    4.00  9.57  -   15.40  12.00  5.60  •      •                       4.40-12.00  0.08-0.15
           ADKT 150550L-HM  (1)  5.00  9.57  -  15.10  12.00  5.30  •                            5.40-12.00  0.08-0.15
           ADKT 150550R-HM    5.00  9.57  -   15.10  12.00  5.30  •      •   •            •      5.40-12.00  0.08-0.15
           ADKT 150564L-HM  (1)  6.20  9.57  -  14.80  12.00  5.30  •                            6.50-12.00  0.08-0.15
           ADKT 150564R-HM    6.20  9.57  -   14.80  12.00  5.30      •  •   •                   6.50-12.00  0.08-0.15
          •  For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified   •  Inserts with corner radii larger than 0.8 mm should be used on ADK & SM
          tools only on the face of the cutter.   •  For cutting speed recommendations, see pages 542-547
          (1)  L - Left-hand inserts are used only for special tools.
          For tools, see pages: E90AC (36) • ETS (341) • F90AD-SFR (211) • FST (361) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32)
          •  HM90 F90A-15 (210) • HM90 F90A-15-JHP (210) • SM (250)

                                                            RE   R12.7                                       Rd°
          ADKT 1505-FF
          Inserts for Fast Feed Milling
                                                          INSL

                                                                  AE  APMX    S
                                                                W1
                                                                                                   Recommended
                                                   Dimensions                       Tough 1   Hard
                                                                                                   Machining Data


                                                                                                   ap
                                                                                                           fz
           Designation       W1      INSL    APMX     AE      S       RE      Rg (1)  IC330  IC928  IC808  (mm)  (mm/t)
           ADKT 1505R8T-FF   9.90    15.90   1.50     6.6     6.20    2.70    3.50  •    •   •   0.50-1.00  0.50-1.50
          •  The cutting diameter of the tool is 0.5 mm larger than the nominal diameter when using this insert.   •  Tool corner should be modified to 2.0 mm.
          •  At D.O.C. larger than apmax, regular insert feed should be applied.
          (1)  Radius for programming
          For tools, see pages: F90AD-SFR (211) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210)
          •  HM90 F90A-15-JHP (210)
