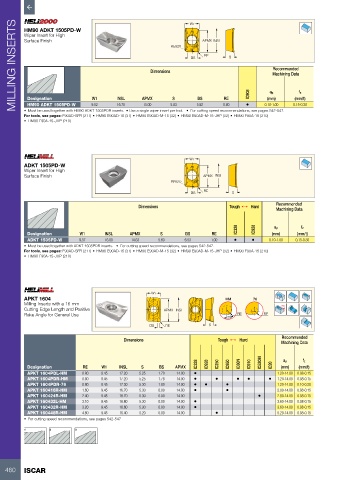

MILLING INSERTS HM90 ADKT 1505PD-W Dimensions RE820 W1 W M90 APMX lNSL S Recommended
Wiper Insert for High
Surface Finish
W
RE
BS

Machining Data

IC908
ap
fz
BS
APMX
W1
Designation
S
RE
INSL
(mm/t)
•
16.75
5.83
15.00
9.52
0.80
0.10-1.00
5.92
HM90 ADKT 1505PD-W
• Must be used together with HM90 ADKT 1505PDR inserts. • Use a single wiper insert per tool. • For cutting speed recommendations, see pages 542-547.
For tools, see pages: F90AD-SFR (211) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210) (mm) 0.15-0.30
• HM90 F90A-15-JHP (210)

W1
ADKT 1505PD-W W
Wiper Insert for High
Surface Finish APMX INSL
RE820 M90
BS RE S
Recommended
Dimensions Tough 1 Hard
Machining Data
IC328 IC928 ap fz
Designation W1 INSL APMX S BS RE (mm) (mm/t)
ADKT 1505PD-W 9.57 16.00 14.63 5.60 6.53 1.00 • • 0.10-1.00 0.15-0.30
• Must be used together with ADKT 1505PDR inserts. • For cutting speed recommendations, see pages 542-547.
For tools, see pages: F90AD-SFR (211) • HM90 E90AD-15 (31) • HM90 E90AD-M-15 (32) • HM90 E90AD-M-15-JHP (32) • HM90 F90A-15 (210)
• HM90 F90A-15-JHP (210)

W1

APKT 1604 HM 76
Milling Inserts with a 16 mm Rd°
Cutting Edge Length and Positive APMX INSL
Rake Angle for General Use 25˚ RE RE

BS RE S
Recommended
Dimensions Tough 1 Hard
Machining Data

IC328 IC928 IC250 IC950 IC30N IC910 IC520M ap fz
Designation RE W1 INSL S BS APMX IC20 (mm) (mm/t)
APKT 1604PDL-HM 0.80 9.45 17.20 5.25 1.70 14.00 • 1.20-14.00 0.08-0.15
APKT 1604PDR-HM 0.80 9.45 17.20 5.25 1.78 14.00 • • • • • 1.20-14.00 0.08-0.15
APKT 1604PDR-76 0.80 9.45 17.30 5.30 1.80 14.00 • • • 1.20-14.00 0.10-0.20
APKT 160416R-HM 1.60 9.45 16.70 5.30 0.00 14.00 • • 2.00-14.00 0.08-0.15
APKT 160424R-HM 2.40 9.45 16.70 5.30 0.00 14.00 • 2.80-14.00 0.08-0.15
APKT 160432L-HM 3.10 9.45 16.60 5.30 0.00 14.00 • 3.60-14.00 0.08-0.15
APKT 160432R-HM 3.20 9.45 16.60 5.30 0.00 14.00 • 3.60-14.00 0.08-0.15
APKT 160448R-HM 4.80 9.45 16.40 5.20 0.00 14.00 • 5.20-14.00 0.08-0.15
• For cutting speed recommendations, see pages 542-547

1 2 3
