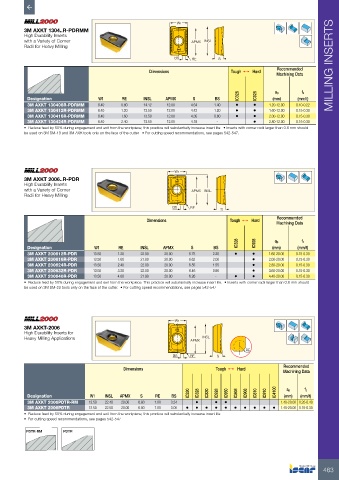

Page 465 - ISCAR(MILLINGCATALOG 38_2021)
P. 465

W1

          3M AXKT 1304..R-PDRMM
          High Durability Inserts
            with a Variety of Corner                                APMX  INSL
          Radii for Heavy Milling
                                                              BS    RE        S

                                                     Dimensions                   Tough 1   Hard  Recommended         MILLING INSERTS
                                                                                                  Machining Data


                                                                                     IC328  IC928  ap      fz
           Designation              W1      RE     INSL    APMX      S      BS                   (mm)     (mm/t)
           3M AXKT 130408R-PDRMM   8.40     0.80   14.12    12.00   4.54    1.40    •     •     1.20-12.00  0.10-0.22
           3M AXKT 130412R-PDRMM   8.40     1.20   13.50    12.00   4.42    1.20    •     •     1.60-12.00  0.15-0.30
           3M AXKT 130416R-PDRMM   8.40     1.60   13.50    12.00   4.36    0.80    •     •     2.00-12.00  0.15-0.30
           3M AXKT 130424R-PDRMM   8.40     2.40   13.50    12.00   4.18     -            •     2.80-12.00  0.15-0.30
          •  Reduce feed by 50% during engagement and exit from the workpiece; this practice will substantially increase insert life   • Inserts with corner radii larger than 0.8 mm should
          be used on 3M SM-13 and 3M AXK tools only on the face of the cutter   • For cutting speed recommendations, see pages 542-547.




                                                              W1

          3M AXKT 2006..R-PDR
          High Durability Inserts
          with a Variety of Corner                                  APMX INSL
          Radii for Heavy Milling

                                                              BS    RE        S
                                                                                                  Recommended
                                                     Dimensions                   Tough 1   Hard
                                                                                                  Machining Data

                                                                                    IC328  IC928  ap       fz
           Designation            W1       RE     INSL    APMX      S       BS                   (mm)    (mm/t)
           3M AXKT 200612R-PDR    13.50   1.20    22.00    20.00   6.75     2.20   •      •    1.60-20.00  0.15-0.30
           3M AXKT 200616R-PDR    13.50   1.60    21.80    20.00   6.62     2.00          •    2.00-20.00  0.15-0.30
           3M AXKT 200624R-PDR    13.50   2.40    22.00    20.00   6.55     1.55          •    2.80-20.00  0.15-0.30
           3M AXKT 200632R-PDR    13.50   3.20    22.00    20.00   6.46     0.90          •    3.60-20.00  0.15-0.30
           3M AXKT 200640R-PDR    13.50   4.00    21.90    20.00   6.26      -     •      •    4.40-20.00  0.15-0.30
          •  Reduce feed by 50% during engagement and exit from the workpiece. This practice will substantially increase insert life.  • Inserts with corner radii larger than 0.8 mm should
          be used on 3M SM-20 tools only on the face of the cutter.  • For cutting speed recommendations, see pages 542-547




                                                              W1
          3M AXKT-2006
          High Durability Inserts for
          Heavy Milling Applications                                APMX  INSL
                                                                                       RE
                                                              BS    RE       S
                                                                                                     Recommended
                                            Dimensions                       Tough 1   Hard         Machining Data


                                                                   IC330  IC328  IC830  IC928  IC950  IC808  IC908  IC810  IC910  IC4100  ap  fz
           Designation           W1   INSL  APMX  S     RE   BS                                      (mm)  (mm/t)
           3M AXKT 2006PDTR-RM  13.50  22.40  20.00  6.80  1.00  3.34  •    •   •                   1.40-20.00 0.20-0.40
           3M AXKT 2006PDTR     13.50  22.50  20.00  6.80  1.00  3.05  •  •  •  •  •  •  •  •  •  •  1.40-20.00 0.15-0.30
          •  Reduce feed by 50% during engagement and exit from the workpiece; this practice will substantially increase insert life
          •  For cutting speed recommendations, see pages 542-547

          PDTR-RM      PDTR
