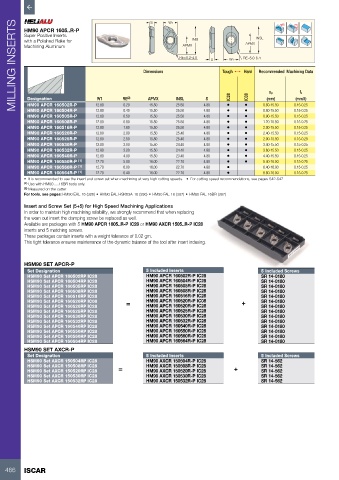

P. 468

MILLING INSERTS    HM90 APCR 1605..R-P       Dimensions  W1  RE=0.2-4.0  S  Tough 1   Hard  INSL  Rd°
                                                      S
          Super Positive Inserts
                                                                     INSL
          with a Polished Rake for
                                                                                       APMX
          Machining Aluminum
                                                                 APMX
                                                                                      RE=5.0-6.4
                                                                                  W1
                                                                                            Recommended  Machining Data



                                                                                                ap
                                                                                                          fz
           Designation
                                                                                               (mm)
                                                                         S
                                                                                                         (mm/t)
                                   W1
                                            0.20
                                                     15.50
                                                               25.50
           HM90 APCR 160502R-P
                                                                                       •
                                                                                 •
                                                     15.50
                                                               25.50
                                   12.80
                                                                                                        0.15-0.25
                                            0.40
                                                                         4.80
           HM90 APCR 160504R-P
                                                                                             0.80-15.50
                                                                                 •
                                                                                       •
                                                                         4.80
                                   12.80
                                                                                                        0.15-0.25
                                                     15.50
                                            0.50
           HM90 APCR 160505R-P     12.80    RE (2)   APMX      INSL      4.80    • IC28  • IC08  0.60-15.50  0.15-0.25
                                                                                             0.90-15.50
                                                               25.50
           HM90 APCR 160508R-P     12.80    0.80     15.50     25.50     4.80    •     •     1.20-15.50  0.15-0.25
           HM90 APCR 160516R-P     12.80    1.60     15.50     25.50     4.80    •     •     2.00-15.50  0.15-0.25
           HM90 APCR 160520R-P     12.80    2.00     15.50     25.40     4.80    •     •     2.40-15.50  0.15-0.25
           HM90 APCR 160525R-P     12.80    2.50     15.50     25.40     4.80    •     •     2.90-15.50  0.15-0.25
           HM90 APCR 160530R-P     12.80    3.00     15.50     24.40     4.80    •     •     3.40-15.50  0.15-0.25
           HM90 APCR 160532R-P     12.80    3.20     15.50     24.40     4.80    •     •     3.60-15.50  0.15-0.25
           HM90 APCR 160540R-P     12.80    4.00     15.50     23.40     4.80    •     •     4.40-15.50  0.15-0.25
           HM90 APCR 160550R-P  (1)  12.70  5.00     16.00     22.70     4.80    •     •     5.40-16.00  0.15-0.25
           HM90 APCR 160560R-P  (1)  12.70  6.00     16.00     22.70     4.80    •           6.40-16.00  0.15-0.25
           HM90 APCR 160564R-P  (1)  12.70  6.40     16.00     22.70     4.80    •           6.80-16.00  0.15-0.25
          •  It is recommended to use the insert and screw set when machining at very high cutting speeds.   •  For cutting speed recommendations, see pages 542-547
          (1)  Use with HM90 ....16BR tools only.
          (2)  Measured on the cutter
          For tools, see pages: HM90 EAL-16 (386) • HM90 EAL-HSK63A-16 (386) • HM90 FAL-16 (387) • HM90 FAL-16BR (387)
            Insert and Screw Set (5+5) for High Speed Machining Applications
            In order to maintain high machining reliability, we strongly recommend that when replacing
          the worn out insert the clamping screw be replaced as well.
          Available are packages with 5 HM90 APCR 1605..R-P IC28 or HM90 AXCR 1505..R-P IC28
          inserts and 5 matching screws.
          These packages contain inserts with a weight tolerance of 0.02 gm.
          This tight tolerance ensures maintenance of the dynamic balance of the tool after insert indexing.
              HSM90 SET APCR-P
             Set Designation                          5 Included Inserts                       5 Included Screws
           HSM90 Set APCR 160502RP IC28             HM90 APCR 160502R-P IC28                 SR 14-0180
           HSM90 Set APCR 160504RP IC28             HM90 APCR 160504R-P IC28                 SR 14-0180
           HSM90 Set APCR 160505RP IC28             HM90 APCR 160505R-P IC28                 SR 14-0180
           HSM90 Set APCR 160508RP IC28             HM90 APCR 160508R-P IC28                 SR 14-0180
           HSM90 Set APCR 160516RP IC28             HM90 APCR 160516R-P IC28                 SR 14-0180
           HSM90 Set APCR 160520RP IC08      =      HM90 APCR 160520R-P IC08          +      SR 14-0180
           HSM90 Set APCR 160520RP IC28             HM90 APCR 160520R-P IC28                 SR 14-0180
           HSM90 Set APCR 160525RP IC28             HM90 APCR 160525R-P IC28                 SR 14-0180
           HSM90 Set APCR 160530RP IC28             HM90 APCR 160530R-P IC28                 SR 14-0180
           HSM90 Set APCR 160532RP IC28             HM90 APCR 160532R-P IC28                 SR 14-0180
           HSM90 Set APCR 160540RP IC28             HM90 APCR 160540R-P IC28                 SR 14-0180
           HSM90 Set APCR 160550RP IC28             HM90 APCR 160550R-P IC28                 SR 14-0180
           HSM90 Set APCR 160560RP IC28             HM90 APCR 160560R-P IC28                 SR 14-0180
           HSM90 Set APCR 160564RP IC28             HM90 APCR 160564R-P IC28                 SR 14-0180
              HSM90 SET AXCR-P
             Set Designation                          5 Included Inserts                       5 Included Screws
           HSM90 Set AXCR 150504RP IC28             HM90 AXCR 150504R-P IC28                 SR 14-562
           HSM90 Set AXCR 150508RP IC28             HM90 AXCR 150508R-P IC28       +         SR 14-562
           HSM90 Set AXCR 150520RP IC28    =        HM90 AXCR 150520R-P IC28                 SR 14-562
           HSM90 Set AXCR 150530RP IC28             HM90 AXCR 150530R-P IC28                 SR 14-562
           HSM90 Set AXCR 150532RP IC28             HM90 AXCR 150532R-P IC28                 SR 14-562
