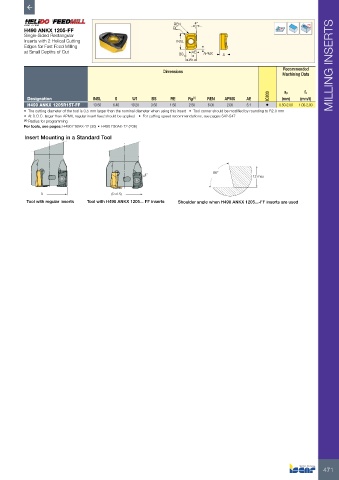

Page 473 - ISCAR(MILLINGCATALOG 38_2021)
P. 473

REN    4°                                      Rd°
          H490 ANKX 1205-FF                                   RE
          Single-Sided Rectangular
          Inserts with 2 Helical Cutting                       lNSL
          Edges for Fast Feed Milling
          at Small Depths of Cut                                BS  AE  APMX   S
                                                                   W1                                                 MILLING INSERTS
                                                          Dimensions                                Recommended
                                                                                                    Machining Data


                                                                                               IC830  ap    fz
           Designation            INSL   S     W1     BS     RE    Rg (1)  REN  APMX    AE          (mm)  (mm/t)
           H490 ANKX 1205R15T-FF  13.50  6.40  10.20  3.50   1.50  2.50   6.00   2.00   5.1   •    0.50-2.00  1.00-2.00
          •  The cutting diameter of the tool is 0.5 mm larger than the nominal diameter when using this insert   •  Tool corner should be modified by rounding to R2.0 mm
          •  At D.O.C. larger than APMX, regular insert feed should be applied.   •  For cutting speed recommendations, see pages 542-547
          (1)  Radius for programming
          For tools, see pages: H490 E90AX-12 (30) • H490 F90AX-12 (206)
          Insert Mounting in a Standard Tool






                                                                            86°
                                                4°  4°                                    12 max


               D    D                (D+0.5)  (D+0.5)
            Tool with regular inserts  Tool with H490 ANKX 1205... FF inserts  Shoulder angle when H490 ANKX 1205...-FF inserts are used
