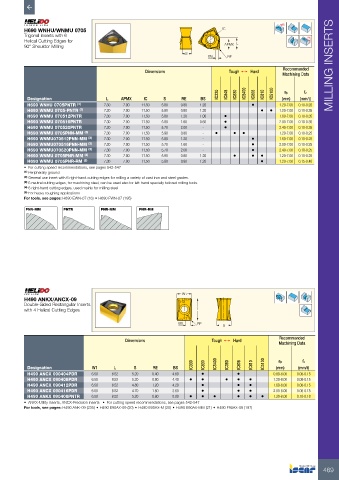

P. 471

IC
          H690 WNHU/WNMU 0705
          Trigonal Inserts with 6                                                                            Rd°
          Helical Cutting Edges for
          90° Shoulder Milling                                                  APMX  L
                                                                  S
                                                                          BS     RE

                                                    Dimensions                   Tough 1   Hard     Recommended       MILLING INSERTS
                                                                                                    Machining Data


                                                                              IC330  IC845  IC830  IC5400  IC808  IC810  IC5100  ap  fz
           Designation                L     APMX   IC     S      RE    BS                           (mm)  (mm/t)
           H690 WNHU 0705PNTR  (1)    7.30  7.00   11.50  5.80   0.80  1.20              •         1.20-7.00  0.10-0.20
           H690 WNMU 0705-PNTR  (2)   7.30  7.00   11.50  5.90   0.80  1.20                  •  •  1.20-7.00  0.10-0.35
           H690 WNMU 070512PNTR       7.30  7.00   11.50  5.80   1.20  1.00     •                  1.60-7.00  0.10-0.35
           H690 WNMU 070516PNTR       7.30  7.00   11.50  5.80   1.60  0.60     •                  2.00-7.00  0.10-0.35
           H690 WNMU 070520PNTR       7.30  7.00   11.50  5.70   2.00   -       •                  2.40-7.00  0.10-0.35
           H690 WNMU 0705PNN-MM  (3)  7.30  7.00   11.50  5.90   0.80   -    •     •  •            1.20-7.00  0.10-0.25
           H690 WNMU070512PNN-MM  (3)  7.30  7.00  11.50  5.80   1.20   -                •         1.60-7.00  0.10-0.25
           H690 WNMU070516PNN-MM  (3)  7.30  7.00  11.50  5.70   1.60   -                •         2.00-7.00  0.10-0.25
           H690 WNMU070520PNN-MM  (3)  7.30  7.00  11.50  5.70   2.00   -                •         2.40-7.00  0.10-0.25
           H690 WNMU 0705PNR-MM  (4)  7.30  7.00   11.50  5.90   0.80  1.20        •     •   •     1.20-7.00  0.10-0.25
           H690 WNMU 0705PNR-RM  (5)  7.30  7.00   11.50  5.80   0.80  1.20                  •     1.20-7.00  0.15-0.40
          •  For cutting speed recommendations, see pages 542-547
          (1)  Peripherally ground
          (2)  General use insert with 6 right-hand cutting edges for milling a variety of cast iron and steel grades.
          (3)  6 neutral cutting edges, for machining steel, can be used also for left-hand specially tailored milling tools.
          (4)  6 right-hand cutting edges, used mainly for milling steel
          (5)  For heavy roughing applications
          For tools, see pages: H690 EWN-07 (16) • H690 FWN-07 (195)

          PNN-MM       PNTR         PNR-MM        PNR-RM













                                                                 W1

          H490 ANKX/ANCX-09
          Double-Sided Rectangular Inserts                       1
          with 4 Helical Cutting Edges                            3   L

                                                                BS    RE       S


                                                                                                   Recommended
                                             Dimensions                    Tough 1   Hard
                                                                                                   Machining Data

                                                                     IC330  IC830  IC5400  IC380  IC808  IC810  IC5100  ap  fz
           Designation           W1      L      S      RE     BS                                  (mm)    (mm/t)
           H490 ANCX 090404PDR   6.50   8.52   5.20   0.40    4.80      •           •            0.80-8.00  0.08-0.15
           H490 ANCX 090408PDR   6.50   8.52   5.20   0.80    4.40  •   •       •   •    •       1.20-8.00  0.08-0.15
           H490 ANCX 090412PDR   6.50   8.52   4.80   1.20    4.20      •           •    •       1.60-8.00  0.08-0.15
           H490 ANCX 090416PDR   6.50   8.52   4.70   1.60    3.60      •           •    •       2.00-8.00  0.08-0.15
           H490 ANKX 090408PNTR  6.50   8.52   5.20   0.80    5.00  •   •   •       •    •   •   1.20-8.00  0.10-0.18
          •  ANKX-Utility inserts, ANCX-Precision inserts   •  For cutting speed recommendations, see pages 542-547
          For tools, see pages: H490 ANK-09 (235) • H490 E90AX-09 (20) • H490 E90AX-M (20) • H490 E90AX-MM (21) • H490 F90AX-09 (197)
