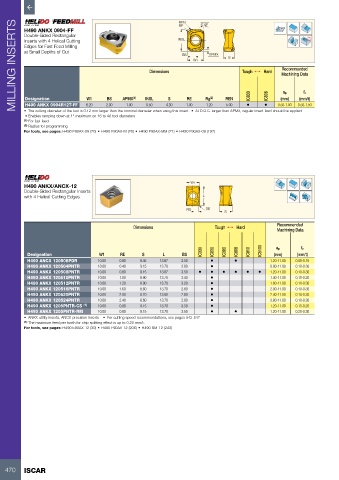

P. 472

MILLING INSERTS  H490 ANKX 0904-FF              Dimensions  INSL  W1  3°30’ APMX  S  Tough 1   Hard  Machining Data Rd°
                                                                REN
                                                                RE
          Double-Sided Rectangular
          Inserts with 4 Helical Cutting
          Edges for Fast Feed Milling
          at Small Depths of Cut
                                                                 BS
                                                                                                    Recommended




                                                                                                            fz
                                                                                                    ap
                                                                                                    (mm)
                                                                   RE
                                                            S
          Designation
                                            APMX
                                       BS
                               W1
                                                                                                          (mm/t)
                                                    8.50
                                             1.00
                               6.20
                                                                         1.20
                                      2.30
                                                                                5.00
          H490 ANKX 0904R12T-FF
          •  The cutting diameter of the tool is 0.12 mm larger than the nominal diameter when using this insert   •  At D.O.C. larger than APMX, regular insert feed should be applied
           • Enables ramping down at 1° maximum on 16 to 40 tool diameters (1)  INSL  4.30  1.00  Rg (2)  REN  • IC830  • IC808  0.50-1.00  0.50-1.50
          (1)  For fast feed
          (2)  Radius for programming
          For tools, see pages: H490 E90AX-09 (20) • H490 E90AX-M (20) • H490 E90AX-MM (21) • H490 F90AX-09 (197)


          H490 ANKX/ANCX-12                                         W1
          Double-Sided Rectangular Inserts                          1
          with 4 Helical Cutting Edges                               3  L
                                                                   BS    RE     S
                                                                                                  Recommended
                                                Dimensions                   Tough 1   Hard
                                                                                                  Machining Data

                                                                        IC330  IC830  IC380  IC808  IC810  IC5100  ap  fz
           Designation              W1     RE      S      L      BS                              (mm)    (mm/t)
           H490 ANCX 120508PDR     10.00   0.80   9.45   13.67   3.50      •       •            1.20-11.00  0.08-0.15
           H490 ANKX 120504PNTR    10.00   0.40   9.15   13.70   3.80      •                    0.80-11.00  0.10-0.30
           H490 ANKX 120508PNTR    10.00   0.80   9.15   13.67   3.50  •   •   •   •    •   •   1.20-11.00  0.10-0.30
           H490 ANKX 120510PNTR    10.00   1.00   8.90   13.70   3.40      •                    1.40-11.00  0.10-0.30
           H490 ANKX 120512PNTR    10.00   1.20   8.90   13.70   3.20      •                    1.60-11.00  0.10-0.30
           H490 ANKX 120516PNTR    10.00   1.60   8.60   13.70   2.80      •                    2.00-11.00  0.10-0.30
           H490 ANKX 120520PNTR    10.00   2.00   8.70   13.60   2.80      •                    2.40-11.00  0.10-0.30
           H490 ANKX 120524PNTR    10.00   2.40   8.60   13.70   2.80      •                    2.80-11.00  0.10-0.30
           H490 ANKX 1205PNTR-CS  (1)  10.00  0.80  9.15  13.70  3.50      •                    1.20-11.00  0.15-0.20
           H490 ANKX 1205PNTR-RM   10.00   0.80   9.15   13.70   3.50      •       •            1.20-11.00  0.20-0.30
          •  ANKX-utility inserts, ANCX-precision inserts    •  For cutting speed recommendations, see pages 542-547
          (1)  The maximum feed per tooth for chip splitting effect is up to 0.20 mm/t.
          For tools, see pages: H490 E90AX-12 (30) • H490 F90AX-12 (206) • H490 SM-12 (243)
