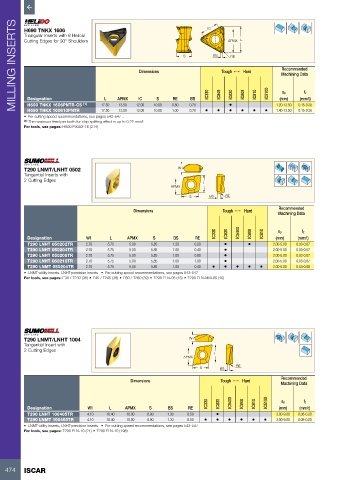

Page 476 - ISCAR(MILLINGCATALOG 38_2021)

MILLING INSERTS H690 TNKX 1606 Dimensions S IC BS 3 2 Tough 1 Hard Machining Data
Triangular Inserts with 6 Helical
L
1
Cutting Edges for 90° Shoulders
APMX
RE
Recommended

ap
fz
APMX
RE
S
IC
L
Designation
(mm/t)
(mm)
BS
(1)
H690 TNKX 1606PNTR-CS
17.50
13.50
•
17.50
0.70
1.40-13.50
0.15-0.30
1.00
13.50
12.00
10.00
H690 TNKX 160610PNTR
• For cutting speed recommendations, see pages 542-547 .. 12.00 10.00 0.80 0.70 • IC330 • IC845 • IC830 • IC808 • IC810 • IC5100 1.20-13.50 0.15-0.30
(1) The maximum feed per tooth for chip splitting effect is up to 0.22 mm/t
For tools, see pages: H690 F90AX-16 (214)

T290 LNMT/LNHT 0502 W1
Tangential Inserts with
2 Cutting Edges L
APMX
S BS RE
Recommended
Dimensions Tough 1 Hard
Machining Data
IC330 IC830 IC5400 IC808 IC810 ap fz
Designation W1 L APMX S BS RE (mm) (mm/t)
T290 LNHT 050202TR 2.70 5.75 5.00 5.85 1.20 0.20 • • 2.00-5.00 0.03-0.07
T290 LNHT 050204TR 2.70 5.75 5.00 5.85 1.00 0.40 • 2.00-5.00 0.03-0.07
T290 LNHT 050208TR 2.70 5.75 5.00 5.85 1.00 0.80 • 2.00-5.00 0.03-0.07
T290 LNHT 050210TR 2.70 5.75 5.00 5.85 1.00 1.00 • 2.00-5.00 0.03-0.07
T290 LNMT 050204TR 2.70 5.75 5.00 5.85 1.00 0.40 • • • • • 2.00-5.00 0.04-0.08
• LNMT-utility inserts. LNHT-precision inserts • For cutting speed recommendations, see pages 542-547
For tools, see pages: E30 / T230 (36) • E45 / T245 (38) • E60 / T260 (39) • T290 ELN-05 (15) • T290 ELN-MM-05 (15)

T290 LNMT/LNHT 1004 W1
Tangential Insert with
2 Cutting Edges
L
APMX
S BS RE
Recommended
Dimensions Tough 1 Hard
Machining Data

IC330 IC830 IC5400 IC808 IC810 IC5100 ap fz
Designation W1 L APMX S BS RE (mm) (mm/t)
T290 LNHT 100405TR 4.10 10.40 10.00 8.90 1.30 0.50 • 3.00-9.00 0.08-0.20
T290 LNMT 100405TR 4.10 10.40 10.00 8.90 1.30 0.50 • • • • • • 3.00-9.00 0.08-0.20
• LNMT-utility inserts, LNHT-precision inserts • For cutting speed recommendations, see pages 542-547
For tools, see pages: T290 ELN-10 (21) • T290 FLN-10 (198)
