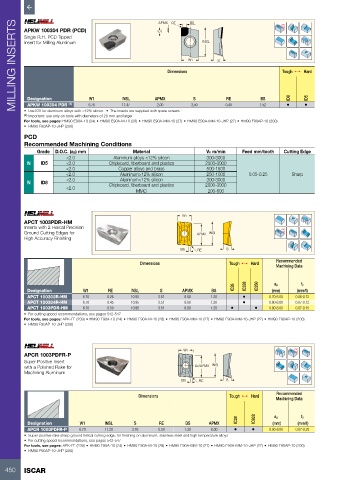

P. 452

MILLING INSERTS  APKW 100304 PDR (PCD)            4.4  Dimensions  W1  lNSL  S                Rd°
                                                                    BS
                                                         APMX
                                                             RE
          Single R.H. PCD Tipped
          Insert for Milling Aluminum



                                                                                                    Tough 1   Hard




                                W1
           Designation
                                                                                            BS
                                                                     S
                                            INSL
                                                                                RE
                                                        2.00
                                            11.47
                                6.76
           APKW 100304 PDR
                         (1)
          •  Use ID5 for aluminum alloys with <12% silicon.  •  The inserts are supplied with spare screws.
          (1)  Important: use only on tools with diameters of 20 mm and larger    APMX  3.50  0.40  1.52  • ID8  • ID5
          For tools, see pages: HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27) • HM90 F90AP-10 (200)
          •  HM90 F90AP-10-JHP (200)
            PCD
          Recommended Machining Conditions
                Grade   D.O.C. (ap) mm           Material                  Vc m/min    Feed mm/tooth   Cutting Edge
                         <2.0              Aluminum alloys <12% silicon   300-3000
           N   ID5      <2.0           Chipboard, fiberboard and plastics  2000-3000
                        <2.0               Copper alloys and brass        500-1500
                        <2.0                Aluminum>12% silicon          250-1000      0.05-0.25      Sharp
                                            Aluminum<12% silicon
                                                                          300-3000
           N   ID8      <2.0           Chipboard, fiberboard and plastics  2000-3000
                        <2.0
                                                 MMC                      200-600

                                                                 W1
          APCT 1003PDR-HM
          Inserts with 2 Helical Precision                                                          Rd°
          Ground Cutting Edges for                                    APMX INSL
          High Accuracy Finishing
                                                                BS    RE        S
                                                                                                  Recommended
                                                  Dimensions                      Tough 1   Hard  Machining Data



                                                                                   IC28  IC328  IC250  ap  fz
           Designation        W1       RE      INSL      S       APMX      BS                   (mm)     (mm/t)
           APCT 100302R-HM    6.70     0.25    10.95     3.51     8.00     1.20       •         0.70-8.00  0.06-0.12
           APCT 100304R-HM    6.70     0.45    10.95     3.51     8.00     1.20       •         0.90-8.00  0.07-0.12
           APCT 1003PDR-HM    6.70     0.50    10.95     3.51     8.00     1.20   •       •     0.90-8.00  0.07-0.15
          •  For cutting speed recommendations, see pages 542-547
          For tools, see pages: APK-FE (239) • HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27) • HM90 F90AP-10 (200)
          •  HM90 F90AP-10-JHP (200)


                                                                                                         Rd°
          APCR 1003PDFR-P                                        W1
          Super Positive Insert
          with a Polished Rake for                                   LE/APMX INSL
          Machining Aluminum
                                                                 BS    RE       S

                                                                                                  Recommended
                                                  Dimensions                      Tough 1   Hard
                                                                                                  Machining Data

                                                                                    IC28   IC928  ap       fz
           Designation       W1       INSL      S        RE       BS      APMX                   (mm)     (mm/t)
           APCR 1003PDFR-P   6.70     11.20    3.76      0.50     1.20     8.00    •     •      0.90-8.00  0.07-0.25
          •  Super positive rake sharp ground helical cutting edge, for finishing on aluminum, stainless steel and high temperature alloys
          •  For cutting speed recommendations, see pages 542-547
          For tools, see pages: APK-FE (239) • HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27) • HM90 F90AP-10 (200)
          •  HM90 F90AP-10-JHP (200)

   450    ISCAR
