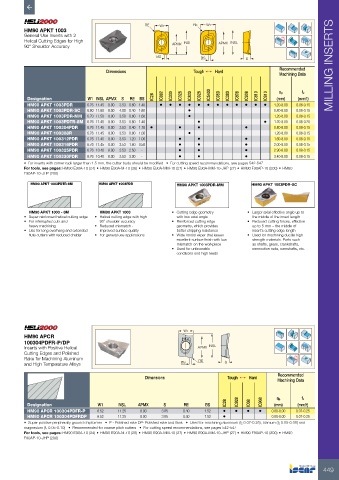

P. 451

RE               RE   W1
          HM90 APKT 1003                                 W1
          General Use Inserts with 2                                                                Rd°
          Helical Cutting Edges for High                          INSL        APMX  INSL
          90° Shoulder Accuracy                              APMX
                                                        BS              BS             S

                                      Dimensions                     Tough 1   Hard                Recommended        MILLING INSERTS
                                                                                                   Machining Data


                                                                                                           fz
                                                                                                   ap
           Designation          W1 INSL APMX  S  RE  BS  IC28  IC882  IC330  IC328  IC830  IC928  IC5400  IC950  IC380  IC808  IC908  IC810  IC910  (mm)  (mm/t)
           HM90 APKT 1003PDR    6.76 11.45  8.00  3.53 0.80 1.40  •  •  •  •  •  •  •  •  •  •  •  •  1.20-8.00  0.08-0.15
           HM90 APKT 1003PDR-SC  6.80 11.60  8.00  4.00 0.40 1.80  •                             0.80-8.00  0.08-0.15
           HM90 APKT 1003PDR-MM  6.70 11.50  8.00  3.50 0.80 1.60  •                             1.20-8.00  0.08-0.15
           HM90 APKT 1003PDTR-8M  6.76 11.45  8.00  3.53 0.80 1.40    •                       •  1.20-8.00  0.08-0.20
           HM90 APKT 100304PDR  6.76 11.45  8.00  3.53 0.40 1.78 •  •  •               •         0.80-8.00  0.08-0.15
           HM90 APKT 100308R    6.76 11.45  8.00  3.53 0.80 1.00   •                             1.20-8.00  0.08-0.15
           HM90 APKT 100312PDR  6.76 11.45  8.00  3.53 1.20 1.00  •   •                •         1.60-8.00  0.08-0.15
           HM90 APKT 100316PDR  6.76 11.45  8.00  3.53 1.60 0.58  •   •                •         2.00-8.00  0.08-0.15
           HM90 APKT 100325PDR  6.76 10.40  8.00  3.53 2.50  -  •     •                •         2.90-8.00  0.08-0.15
           HM90 APKT 100330PDR  6.76 10.40  8.00  3.53 3.00  -  •     •                •         3.40-8.00  0.08-0.15
          •  For inserts with corner radii larger than 1.5 mm, the cutter body should be modified   •  For cutting speed recommendations, see pages 542-547
          For tools, see pages: HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27) • HM90 F90AP-10 (200) • HM90
          F90AP-10-JHP (200)
            HM90 APKT 1003PDTR-8M   HM90 APKT 1003PDR          HM90 APKT 1003PDR-MM      HM90 APKT 1003PDR-SC




           HM90 APKT 1003 - 8M      HM90 APKT 1003           •  Cutting edge geometry   •  Larger axial effective angle up to
          •  Super reinforced helical cutting edge  •  Helical cutting edge with high   with low axial angle  the middle of the insert length
          •  For interrupted cuts and   90˚ shoulder accuracy  •  Reinforced cutting edge   •  Reduced cutting forces, effective
           heavy machining        •  Reduced mismatch -        geometry, which provides   up to 5 mm – the middle of
          •  Use for long overhang and extended   improved surface quality  better chipping resistance  insert’s cutting edge length
           flute cutters with reduced chatter  •  For general use applications  •  Wide frontal wiper that leaves   •  Used for machining ductile high
                                                               excellent surface finish with low   strength materials. Parts such
                                                               mismatch on the workpiece  as shafts, gears, crankshafts,
                                                             •  Used for unfavorable      connection rods, camshafts, etc.
                                                               conditions and high feeds














                                                                 W1
          HM90 APCR
          100304PDFR-P/DP
          Inserts with Positive Helical                               APMX  lNSL
          Cutting Edges and Polished
          Rake for Machining Aluminum                                  RE                               Rd°
          and High Temperature Alloys                            BS             S

                                                                                                   Recommended
                                                    Dimensions                   Tough 1   Hard
                                                                                                  Machining Data

                                                                                                           fz
                                                                                                  ap
           Designation             W1     INSL    APMX    S       RE     BS     IC28  IC928  IC08  IC908  (mm)  (mm/t)
           HM90 APCR 100304PDFR-P  6.52   11.25   8.00    3.85   0.40    1.52  •    •   •   •   0.80-8.00  0.07-0.25
           HM90 APCR 100304PDFRDP  6.52   11.25   8.00    3.85   0.40    1.52  •                0.80-8.00  0.07-0.25
          •  Super positive peripherally ground chipformer   •  P - Polished rake DP- Polished rake and flank   •  Used for machining aluminum (fz 0.07-0.25), titanium (fz 0.05-0.08) and
          magnesium (fz 0.05-0.10)   •  Recommended for coarse pitch cutters   •  For cutting speed recommendations, see pages 542-547
          For tools, see pages: HM90 E90A-10 (24) • HM90 E90A-M-10 (28) • HM90 E90A-MM-10 (27) • HM90 E90A-MM-10-JHP (27) • HM90 F90AP-10 (200) • HM90
          F90AP-10-JHP (200)
