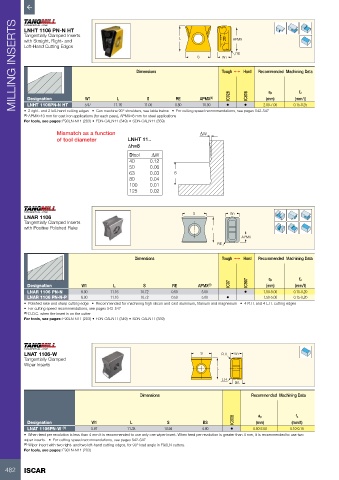

Page 484 - ISCAR(MILLINGCATALOG 38_2021)

MILLING INSERTS LNHT 1106 PN-N HT Dimensions L S W1 APMX Recommended Machining Data
Tangentially Clamped Inserts
with Straight, Right- and
Left-Hand Cutting Edges
RE

Tough 1 Hard

ap
fz
(mm/t)
(mm)
W1
L
Designation
S
5.97
11.16
LNHT 1106PN-N HT
11.00
0.80
10.00
• 2 right- and 2 left-hand cutting edges • Can machine 90° shoulders, see table below • For cutting speed recommendations, see pages 542-547
(1) APMX=10 mm for cast iron applications (for each pass), APMX=8 mm for steel applications RE APMX (1) • IC928 • IC808 2.00-7.00 0.15-0.25
For tools, see pages: F90LN-N11 (203) • FDN-CALN11 (349) • SDN-CALN11 (359)
Mismatch as a function ∆W
of tool diameter LNHT 11..
∆h=8
Dtool ∆W
40 0.12
50 0.06
63 0.03 8
80 0.04
100 0.01
125 0.02

LNAR 1106 S W1
Tangentially Clamped Inserts
with Positive Polished Rake L
APMX
RE

Dimensions Tough 1 Hard Recommended Machining Data

fz
ap
Designation W1 L S RE APMX (1) IC07 IC907 (mm) (mm/t)
LNAR 1106 PN-N 6.00 11.16 10.72 0.50 5.00 • 1.50-5.00 0.15-0.20
LNAR 1106 PN-N-P 6.00 11.16 10.72 0.50 5.00 • 1.50-5.00 0.15-0.20
• Polished rake and sharp cutting edge • Recommended for machining high silicon and cast aluminum, titanium and magnesium • 4 R.H. and 4 L.H. cutting edges
• For cutting speed recommendations, see pages 542-547
(1) D.O.C. when the insert is on the cutter
For tools, see pages: F90LN-N11 (203) • FDN-CALN11 (349) • SDN-CALN11 (359)

LNAT 1106-W S R.H W1
Tangentially Clamped
Wiper Inserts
L

L.H
BS
Dimensions Recommended Machining Data

ap
fz
Designation W1 L S BS IC908 (mm) (mm/t)
LNAT 1106PN-W (1) 5.97 11.38 10.94 4.90 • 0.50-2.00 0.10-0.15
• When feed per revolution is less than 4 mm it is recommended to use only one wiper insert. When feed per revolution is greater than 4 mm, it is recommended to use two
wiper inserts. • For cutting speed recommendations, see pages 542-547
(1) Wiper insert with two right- and two left-hand cutting edges, for 90° lead angle in F90LN cutters.
For tools, see pages: F90LN-N11 (203)
