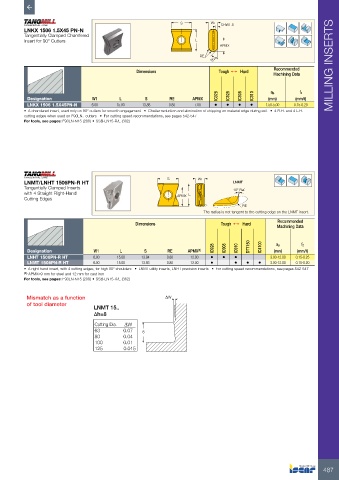

Page 489 - ISCAR(MILLINGCATALOG 38_2021)

S W1 CHW1.5
LNKX 1506 1.5X45 PN-N
Tangentially Clamped Chamfered
Insert for 90° Cutters L
APMX
RE
45°
Dimensions Tough 1 Hard Recommended MILLING INSERTS
Machining Data

IC328 IC928 IC908 IC910 ap fz
Designation W1 L S RE APMX (mm) (mm/t)
LNKX 1506 1.5X45PN-N 6.00 15.00 13.88 0.80 7.00 • • • • 1.50-5.00 0.15-0.20
• A chamfered insert, used only on 90° cutters for smooth engagement • Chatter reduction and elimination of chipping on material edge during exit • 4 R.H. and 4 L.H.
cutting edges when used on F90LN.. cutters • For cutting speed recommendations, see pages 542-547
For tools, see pages: F90LN-N15 (208) • SSB-LN15-R/L (362)

LNMT/LNHT 1506PN-R HT S W1 LNMT
Tangentially Clamped Inserts 10° Ref.
with 4 Straight Right-Hand L
Cutting Edges APMX
RE
The radius is not tangent to the cutting edge on the LNMT insert.
Recommended
Dimensions Tough 1 Hard
Machining Data

IC928 IC908 IC910 DT7150 IC4100 ap fz
Designation W1 L S RE APMX (1) (mm) (mm/t)
LNHT 1506PN-R HT 6.00 15.00 13.94 0.80 12.00 • • • 3.00-12.00 0.15-0.25
LNMT 1506PN-R HT 6.00 15.00 13.93 0.80 12.00 • • • • 3.00-12.00 0.15-0.20
• A right-hand insert, with 4 cutting edges, for high 90° shoulders • LNMT-utility inserts, LNHT-precision inserts • For cutting speed recommendations, see pages 542-547
(1) APMX=9 mm for steel and 12 mm for cast iron
For tools, see pages: F90LN-N15 (208) • SSB-LN15-R/L (362)

Mismatch as a function ∆W
of tool diameter
LNMT 15..
h=8
Cutting Dia. ∆W
63 0.07 8
80 0.04
100 0.01
125 0.015

487
