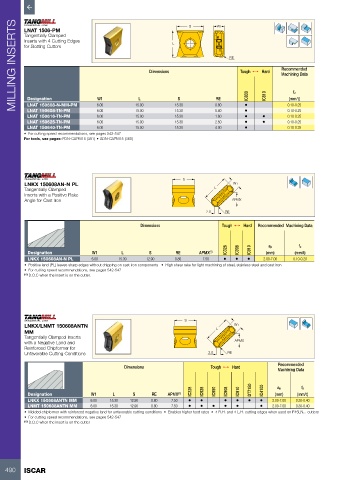

MILLING INSERTS LNAT 1506-PM Dimensions L S W1 RE Tough 1 Hard Machining Data
Tangentially Clamped
Inserts with 4 Cutting Edges
for Slotting Cutters

Recommended

fz
(mm/t)
RE
S
Designation
L
W1
LNAT 150608-N-MM-PM
•
LNAT 150608-TN-PM
15.30
6.00
0.80
15.00
0.10-0.25
•
6.00
LNAT 150616-TN-PM 6.00 15.00 15.30 0.80 • IC830 • IC810 0.10-0.25
15.00
1.60
0.10-0.25
15.30
LNAT 150625-TN-PM 6.00 15.00 15.30 2.50 • • 0.10-0.25
LNAT 150640-TN-PM 6.00 15.00 15.30 4.00 • 0.10-0.25
• For cutting speed recommendations, see pages 542-547
For tools, see pages: FDN-CAPM15 (351) • SDN-CAPM15 (360)

LNKX 150608AN-N PL S W1
Tangentially Clamped L
Inserts with a Positive Rake
Angle for Cast Iron APMX
2.0 RE
Dimensions Tough 1 Hard Recommended Machining Data
IC328 IC908 IC910 ap fz
Designation W1 L S RE APMX (1) (mm) (mm/t)
LNKX 150608AN-N PL 6.00 15.30 12.90 0.80 7.50 • • • 2.00-7.00 0.10-0.20
• Positive land (PL) leaves sharp edges without chipping on cast iron components • High shear rake for light machining of steel, stainless steel and cast iron
• For cutting speed recommendations, see pages 542-547
(1) D.O.C when the insert is on the cutter.

S

LNKX/LNMT 150608ANTN W1
MM L
Tangentially Clamped Inserts
with a Negative Land and APMX
Reinforced Chipformer for
Unfavorable Cutting Conditions 2.0 RE
Recommended
Dimensions Tough 1 Hard
Machining Data

IC328 IC928 IC950 IC908 IC910 DT7150 IC4100 ap fz
Designation W1 L S RE APMX (1) (mm) (mm/t)
LNKX 150608ANTN MM 6.00 15.30 12.90 0.80 7.50 • • • • • • 2.00-7.00 0.30-0.40
LNMT 150608ANTN MM 6.00 15.30 12.90 0.80 7.50 • • • • • • 2.00-7.00 0.30-0.40
• Molded chipformer with reinforced negative land for unfavorable cutting conditions • Enables higher feed rates • 4 R.H. and 4 L.H. cutting edges when used on F45LN... cutters
• For cutting speed recommendations, see pages 542-547
(1) D.O.C when the insert is on the cutter
