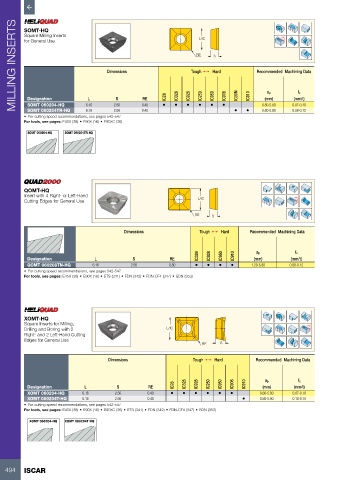

Page 496 - ISCAR(MILLINGCATALOG 38_2021)

MILLING INSERTS SOMT-HQ Dimensions Tough 1 Hard Recommended Machining Data

Square Milling Inserts
Rd°
L/IC

for General Use

RE
S

fz
ap
RE
S
L
(mm/t)
Designation
(mm)
6.16
2.56
SOMT 060204-HQ
0.40
SOMT 060204TR-HQ
6.16
2.56
0.08-0.12
0.80-5.80
• For cutting speed recommendations, see pages 542-547 0.40 • IC28 • IC328 • IC928 • IC250 • IC950 • IC908 • IC30N • IC910 0.80-5.80 0.07-0.10
For tools, see pages: E45X (38) • E90X (16) • E90XC (36)
SOMT 060204-HQ SOMT 060204TR-HQ

QOMT-HQ
Insert with 4 Right- or Left-Hand L/IC Rd°
Cutting Edges for General Use

RE S

Dimensions Tough 1 Hard Recommended Machining Data

fz
ap
Designation L S RE IC328 IC928 IC950 IC910 (mm) (mm/t)
QOMT 060208TN-HQ 6.16 2.56 0.80 • • • • 1.20-5.80 0.08-0.12
• For cutting speed recommendations, see pages 542-547
For tools, see pages: E45X (38) • E90X (16) • ETS (341) • FDN (342) • FDN-CF4 (347) • SDN (353)

XOMT-HQ
Square Inserts for Milling, Rd°
Drilling and Boring with 2 L/IC
Right- and 2 Left-Hand Cutting
Edges for General Use
RE S

Dimensions Tough 1 Hard Recommended Machining Data

ap
fz
Designation L S RE IC28 IC328 IC928 IC250 IC950 IC908 IC910 (mm) (mm/t)
XOMT 060204-HQ 6.16 2.56 0.40 • • • • • • 0.80-5.80 0.07-0.10
XOMT 060204T-HQ 6.16 2.56 0.40 • 0.80-5.80 0.10-0.15
• For cutting speed recommendations, see pages 542-547
For tools, see pages: E45X (38) • E90X (16) • E90XC (36) • ETS (341) • FDN (342) • FDN-CF4 (347) • SDN (353)

XOMT 060204-HQ XOMT 060204T HQ

494 ISCAR
