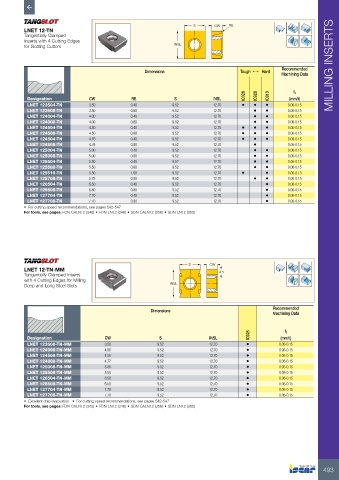

Page 495 - ISCAR(MILLINGCATALOG 38_2021)

S CW RE
LNET 12-TN
Tangentially Clamped
Inserts with 4 Cutting Edges
for Slotting Cutters INSL

Dimensions Tough 1 Hard Recommended MILLING INSERTS
Machining Data

IC328 IC928 IC910 fz
Designation CW RE S INSL (mm/t)
LNET 123504-TN 3.50 0.40 9.52 12.70 • • • 0.06-0.15
LNET 123508-TN 3.50 0.80 9.52 12.70 • • 0.06-0.15
LNET 124004-TN 4.00 0.40 9.52 12.70 • • 0.06-0.15
LNET 124008-TN 4.00 0.80 9.52 12.70 • • 0.06-0.15
LNET 124504-TN 4.50 0.40 9.52 12.70 • • • 0.06-0.15
LNET 124508-TN 4.50 0.80 9.52 12.70 • • • 0.06-0.15
LNET 124804-TN 4.76 0.40 9.52 12.70 • • • 0.06-0.15
LNET 124808-TN 4.76 0.80 9.52 12.70 • 0.06-0.15
LNET 125004-TN 5.00 0.40 9.52 12.70 • • 0.06-0.15
LNET 125008-TN 5.00 0.80 9.52 12.70 • • 0.06-0.15
LNET 125504-TN 5.50 0.40 9.52 12.70 • • 0.06-0.15
LNET 125508-TN 5.50 0.80 9.52 12.70 • • 0.06-0.15
LNET 125516-TN 5.50 1.60 9.52 12.70 • • 0.06-0.15
LNET 125708-TN 5.75 0.80 9.52 12.70 • • 0.06-0.15
LNET 126504-TN 6.50 0.40 9.52 12.70 • 0.06-0.15
LNET 126508-TN 6.50 0.80 9.52 12.70 • 0.06-0.15
LNET 127704-TN 7.70 0.40 9.52 12.70 • 0.06-0.15
LNET 127708-TN 7.70 0.80 9.52 12.70 • 0.06-0.15
• For cutting speed recommendations, see pages 542-547
For tools, see pages: FDN-CALN12 (348) • FDN-LN12 (346) • SDN-CALN12 (356) • SDN-LN12 (355)

S CW
LNET 12-TN-MM 2.5
Tangentially Clamped Inserts
with 4 Cutting Edges for Milling
Deep and Long Steel Slots INSL

Recommended
Dimensions
Machining Data

IC928 fz
Designation CW S INSL (mm/t)
LNET 123508-TN-MM 3.50 9.52 12.70 • 0.06-0.15
LNET 124008-TN-MM 4.00 9.52 12.70 • 0.06-0.15
LNET 124508-TN-MM 4.50 9.52 12.70 • 0.06-0.15
LNET 124808-TN-MM 4.77 9.52 12.70 • 0.06-0.15
LNET 125008-TN-MM 5.00 9.52 12.70 • 0.06-0.15
LNET 125508-TN-MM 5.50 9.52 12.70 • 0.06-0.15
LNET 126504-TN-MM 6.50 9.52 12.70 • 0.06-0.15
LNET 126508-TN-MM 6.50 9.52 12.70 • 0.06-0.15
LNET 127704-TN-MM 7.70 9.52 12.70 • 0.06-0.15
LNET 127708-TN-MM 7.70 9.52 12.70 • 0.06-0.15
• Excellent chip evacuation • For cutting speed recommendations, see pages 542-547
For tools, see pages: FDN-CALN12 (348) • FDN-LN12 (346) • SDN-CALN12 (356) • SDN-LN12 (355)

493
