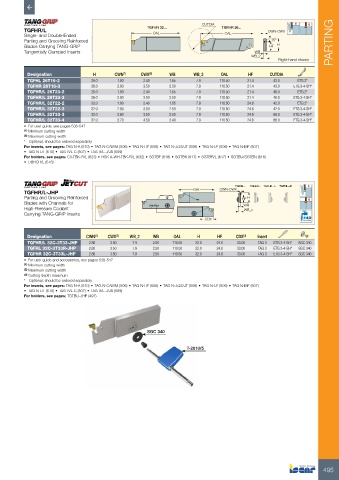

Page 497 - ISCAR(TURNING-CATALOG-42-2022)

CUTDIA
TGFHR/L TGFHR 32... TGFHR 26... CWN-CWX
Single- and Double-Ended OAL OAL
Parting and Grooving Reinforced 15° PARTING
Blades Carrying TANG-GRIP HF H
Tangentially Clamped Inserts WB
WB_2 Right-hand shown

Designation H CWN (1) CWX (2) WB WB_2 OAL HF CUTDIA
TGFHL 26T16-2 26.0 1.80 2.40 1.65 7.9 110.50 21.4 43.0 ETG 2*
TGFHR 26T16-3 26.0 2.80 3.50 2.50 7.9 110.50 21.4 43.0 ETG 3-4-SH*
TGFHR/L 26T23-2 26.0 1.80 2.40 1.65 7.9 110.50 21.4 46.0 ETG 2*
TGFHR/L 26T23-3 26.0 2.80 3.50 2.50 7.9 110.50 21.4 46.0 ETG 3-4-SH*
TGFHR/L 32T22-2 32.0 1.80 2.40 1.65 7.9 110.50 24.8 42.0 ETG 2*
TGFHR/L 32T22-3 32.0 2.80 3.50 2.50 7.9 110.50 24.8 42.0 ETG 3-4-SH*
TGFHR/L 32T33-3 32.0 2.80 3.50 2.50 7.9 110.50 24.8 66.0 ETG 3-4-SH*
TGFHR/L 32T33-4 32.0 3.70 4.50 3.40 7.9 110.50 24.8 66.0 ETG 3-4-SH*
• For user guide, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
* Optional, should be ordered separately
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)
• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)
For holders, see pages: C#-TBK-R/L (623) • HSK A-WH-TBK-R/L (632) • SGTBF (618) • SGTBK (617) • SGTBR/L (617) • SGTBU/SGTBN (616)
• UBHCR/L (618)

TGFHL... TGFHR... TGFHR...L TGFHL...R

TGFHR/L-JHP OAL CWN-CWX
Parting and Grooving Reinforced HF H
Blades with Channels for Min Max WB
High-Pressure Coolant WB_2
Carrying TANG-GRIP Inserts
CDX Bar Max

Designation CWN (1) CWX (2) WB_2 WB OAL H HF CDX (3) Insert
TGFHR/L 32C-3T33-JHP 2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH* SGC 340
TGFHL 32C-3T33R-JHP 2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH* SGC 340
TGFHR 32C-3T33L-JHP 2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH* SGC 340
• For user guide and accessories, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
* Optional, should be ordered separately
For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507)
• TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509)
For holders, see pages: TGTBU-JHP (497)

SGC 340

T-2010/5

495
