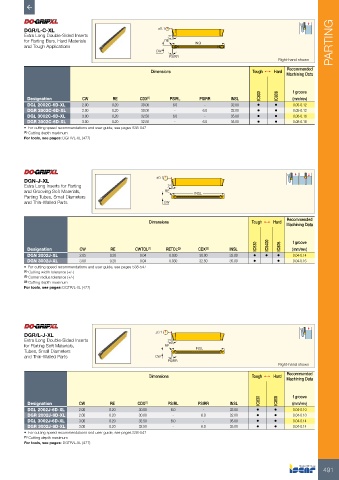

Page 493 - ISCAR(TURNING-CATALOG-42-2022)

DGR/L-C-XL ±0.1
Extra Long Double-Sided Inserts 7°
for Parting Bars, Hard Materials RE INSL PARTING
and Tough Applications
CW
PSIRR
Right-hand shown

Dimensions Tough 1 Hard Recommended
Machining Data

IC830 IC808 f groove
Designation CW RE CDX (1) PSIRL PSIRR INSL (mm/rev)
DGL 2002C-6D-XL 2.00 0.20 30.00 6.0 - 32.00 • • 0.05-0.12
DGR 2002C-6D-XL 2.00 0.20 30.00 - 6.0 32.00 • • 0.05-0.12
DGL 3002C-6D-XL 3.00 0.20 32.50 6.0 - 35.00 • • 0.08-0.18
DGR 3002C-6D-XL 3.00 0.20 32.50 - 6.0 35.00 • • 0.08-0.18
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting depth maximum
For tools, see pages: DGTR/L-XL (477)

DGN-J-XL ±0.1
Extra Long Inserts for Parting 7°
and Grooving Soft Materials, RE INSL
Parting Tubes, Small Diameters
and Thin-Walled Parts CW

Dimensions Tough 1 Hard Recommended
Machining Data

IC830 IC5400 IC808 f groove
Designation CW RE CWTOL (1) RETOL (2) CDX (3) INSL (mm/rev)
DGN 2002J-XL 2.05 0.20 0.04 0.030 30.00 32.00 • • • 0.04-0.14
DGN 3002J-XL 3.00 0.20 0.04 0.030 32.50 35.00 • • 0.04-0.16
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: DGTR/L-XL (477)

DGR/L-J-XL ±0.1
Extra Long Double-Sided Inserts 7°
for Parting Soft Materials, RE INSL
Tubes, Small Diameters
and Thin-Walled Parts CW
PSIRR
Right-hand shown
Recommended
Dimensions Tough 1 Hard Machining Data

IC830 IC808 f groove
Designation CW RE CDX (1) PSIRL PSIRR INSL (mm/rev)
DGL 2002J-6D-XL 2.00 0.20 30.00 6.0 - 32.00 • • 0.04-0.10
DGR 2002J-6D-XL 2.00 0.20 30.00 - 6.0 32.00 • • 0.04-0.10
DGL 3002J-6D-XL 3.00 0.20 32.50 6.0 - 35.00 • • 0.04-0.14
DGR 3002J-6D-XL 3.00 0.20 32.50 - 6.0 35.00 • • 0.04-0.14
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting depth maximum
For tools, see pages: DGTR/L-XL (477)

491
