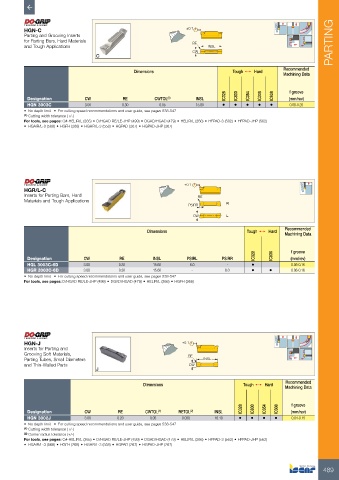

P. 491

±0.1
          HGN-C
          Parting and Grooving Inserts
          for Parting Bars, Hard Materials                           RE                                               PARTING
          and Tough Applications                                          INSL
                                                                     CW


                                                Dimensions                         Tough 1   Hard    Recommended
                                                                                                    Machining Data


                                                                                IC328  IC830  IC354  IC308  IC908  f groove
           Designation         CW           RE         CWTOL (1)      INSL                             (mm/rev)
           HGN 3003C           3.00         0.30         0.05         15.80    •   •   •    •   •      0.08-0.20
          •  No depth limit   •  For cutting speed recommendations and user guide, see pages 538-547
          (1)  Cutting width tolerance (+/-)
          For tools, see pages: C#-HELIR/L (265) • D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479) • HELIR/L (266) • HFPAD-3 (562) • HFPAD-JHP (562)
          •  HGAIR/L-3 (568) • HGFH (268) • HGHR/L-3 (558) • HGPAD (267) • HGPAD-JHP (267)








                                                                  ±0.1

          HGR/L-C
          Inserts for Parting Bars, Hard                               RE
          Materials and Tough Applications
                                                                   PSIRR        R

                                                                     CW         L

                                                                                                     Recommended
                                                     Dimensions                         Tough 1   Hard
                                                                                                     Machining Data

                                                                                          IC328  IC830  f groove
           Designation        CW           RE          INSL        PSIRL       PSIRR                   (mm/rev)
           HGL 3003C-6D       3.00         0.30        15.60        6.0          -       •             0.06-0.16
           HGR 3003C-6D       3.00         0.30        15.60        -           6.0      •      •      0.06-0.16
          •  No depth limit   •  For cutting speed recommendations and user guide, see pages 538-547
          For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479) • HELIR/L (266) • HGFH (268)










          HGN-J                                                  ±0.1
          Inserts for Parting and
          Grooving Soft Materials,                                 RE
          Parting Tubes, Small Diameters                                 INSL
          and Thin-Walled Parts                                    CW


                                                                                                     Recommended
                                                   Dimensions                         Tough 1   Hard
                                                                                                     Machining Data


                                                                                      IC328  IC830  IC354  IC308  f groove
           Designation         CW         RE        CWTOL (1)   RETOL (2)   INSL                       (mm/rev)
           HGN 3002J           3.00       0.20        0.05       0.030      16.10    •   •   •   •     0.04-0.15
          •  No depth limit   •  For cutting speed recommendations and user guide, see pages 538-547
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          For tools, see pages: C#-HELIR/L (265) • D/HGAD RE/LE-JHP (499) • DGAD/HGAD (479) • HELIR/L (266) • HFPAD-3 (562) • HFPAD-JHP (562)
          •  HGAIR/L-3 (568) • HGFH (268) • HGHR/L-3 (558) • HGPAD (267) • HGPAD-JHP (267)
