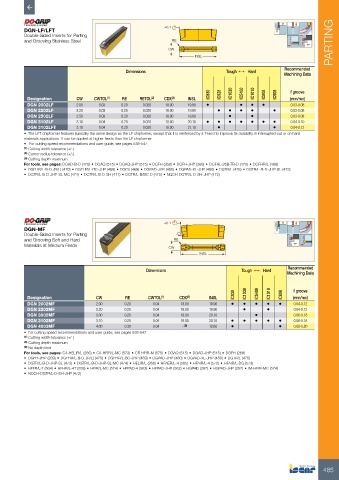

DGN-LF/LFT ±0.1
Double-Sided Inserts for Parting
and Grooving Stainless Steel RE PARTING
CW
INSL

Dimensions Tough 1 Hard Recommended
Machining Data

IC830 IC928 IC1030 IC5400 IC1010 IC808 IC908 f groove
Designation CW CWTOL (1) RE RETOL (2) CDX (3) INSL (mm/rev)
DGN 2002LF 2.00 0.03 0.20 0.020 18.00 19.80 • • • • 0.03-0.08
DGN 2202LF 2.20 0.03 0.20 0.020 18.00 19.80 • • • • • 0.03-0.08
DGN 2502LF 2.50 0.03 0.20 0.020 18.00 19.80 • • 0.03-0.08
DGN 3102LF 3.10 0.04 0.20 0.020 18.00 20.10 • • • • • • • 0.04-0.10
DGN 3102LFT 3.10 0.04 0.20 0.020 18.00 21.10 • • 0.04-0.12
• The LFT chipformer features basically the same design as the LF chipformer, except that it is reinforced by a T-land to improve its durability in interrupted-cut or on hard
materials applications. It can be applied at higher feeds than the LF chipformer
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: DGAD-B-D (479) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268) • DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468)
• DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469) • DGPAD-JHP (480) • DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473)
• DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471) • DGTR/L-B/BC-D (475) • NQCH-DGTR/L-D-SH-JHP (472)

±0.1

DGN-MF
Double-Sided Inserts for Parting 7°
and Grooving Soft and Hard RE
Materials at Medium Feeds CW
INSL

Recommended
Dimensions Tough 1 Hard
Machining Data

f groove
Designation CW RE CWTOL (1) CDX (2) INSL IC830 IC1030 IC5400 IC1010 IC808 (mm/rev)
DGN 2002MF 2.00 0.20 0.04 18.00 19.90 • • • • • 0.04-0.12
DGN 2202MF 2.20 0.20 0.04 18.00 19.90 • • 0.04-0.12
DGN 3002MF 3.00 0.20 0.04 18.00 20.10 • 0.06-0.18
DGN 3102MF 3.10 0.20 0.04 18.00 20.10 • • • • • 0.06-0.18
DGN 4003MF 4.00 0.30 0.04 - (3) 18.80 • • 0.08-0.20
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
(2) Cutting depth maximum
(3) No depth limit
For tools, see pages: C#-HELIR/L (265) • C#-HFIR/L-MC (573) • CR HFIR-M (575) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268)
• DGFH-JHP (269) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGPAD-JHP (480) • DGPAD-XL-JHP (480) • DGTR/L (476)
• DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • HELIR/L (266) • HFAER/L-4 (565) • HFAIR/L-4 (572) • HFAIR/L-DG (573)
• HFFR/L-T (564) • HFHR/L-4T (559) • HFIR/L-MC (574) • HFPAD-4 (563) • HFPAD-JHP (562) • HGPAD (267) • HGPAD-JHP (267) • IM-HFIR-MC (574)
• NQCH-DGTR/L-D-SH-JHP (472)
