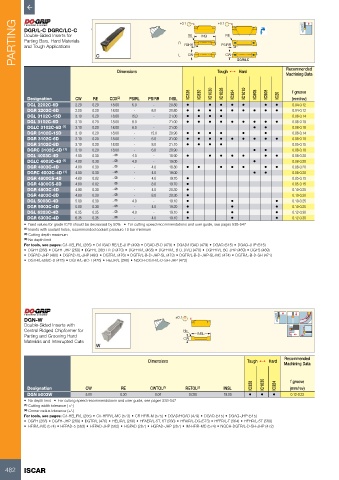

Page 484 - ISCAR(TURNING-CATALOG-42-2022)

PARTING DGR/L-C DGRC/LC-C R L ±0.1 PSIRR INSL ±0.1 RE
Double-Sided Inserts for
RE
Parting Bars, Hard Materials
PSIRR
and Tough Applications
CW
CW
DGR/LC
Dimensions Tough 1 Hard Recommended
Machining Data

IC328 IC830 IC1030 IC1028 IC354 IC1010 IC808 IC908 IC20 f groove
Designation CW RE CDX (2) PSIRL PSIRR INSL (mm/rev)
DGL 2202C-6D 2.20 0.20 18.00 6.0 - 20.80 • • • • • • • 0.04-0.12
DGR 2202C-6D 2.20 0.20 18.00 - 6.0 20.80 • • • • • • • • • 0.04-0.12
DGL 3102C-15D 3.10 0.20 18.00 15.0 - 21.00 • • • • 0.08-0.14
DGL 3102C-6D 3.10 0.20 18.00 6.0 - 21.00 • • • • • • • • • 0.08-0.18
DGLC 3102C-6D (1) 3.10 0.20 18.00 6.0 - 21.00 • • 0.08-0.18
DGR 3102C-15D 3.10 0.20 18.00 - 15.0 20.90 • • • • • • 0.08-0.14
DGR 3102C-6D 3.10 0.20 18.00 - 6.0 21.00 • • • • • • • • • 0.08-0.18
DGR 3102C-8D 3.10 0.20 18.00 - 8.0 21.10 • • • • 0.05-0.15
DGRC 3102C-6D (1) 3.10 0.20 18.00 - 6.0 20.90 • • 0.08-0.18
DGL 4003C-4D 4.00 0.30 - (3) 4.0 - 18.90 • • • • • • • 0.08-0.20
DGLC 4003C-4D (1) 4.00 0.30 - 4.0 - 19.00 • 0.08-0.20
(3)
(3)
DGR 4003C-4D 4.00 0.30 - - 4.0 18.80 • • • • • • • 0.08-0.20
(3)
DGRC 4003C-4D (1) 4.00 0.30 - - 4.0 19.00 • • 0.08-0.20
DGR 4800CS-4D 4.80 0.02 - - 4.0 19.70 • 0.05-0.15
(3)
DGR 4800CS-8D 4.80 0.02 - - 8.0 19.70 • 0.05-0.15
(3)
DGR 4803C-4D 4.80 0.30 - - 4.0 20.30 • 0.10-0.25
(3)
(3)
DGR 4803C-8D 4.80 0.30 - - 8.0 20.30 • 0.10-0.20
(3)
DGL 5003C-4D 5.00 0.30 - 4.0 - 19.10 • • • 0.10-0.25
DGR 5003C-4D 5.00 0.30 - - 4.0 19.20 • • • 0.10-0.25
(3)
DGL 6303C-4D 6.35 0.35 - 4.0 - 19.10 • • • 0.12-0.30
(3)
DGR 6303C-4D 6.35 0.35 - - 4.0 19.10 • • • 0.12-0.30
(3)
• Feed values for grade IC20 should be decreased by 50% • For cutting speed recommendations and user guide, see pages 538-547
(1) Inserts with coolant holes, recommended coolant pressure 10 bar minimum
(2) Cutting depth maximum
(3) No depth limit
For tools, see pages: C#-HELIR/L (265) • D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515)
• DGFH (268) • DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469)
• DGPAD-JHP (480) • DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471)
• DGTR/L-B/BC-D (475) • DGTR/L-BC-T (476) • HELIR/L (266) • NQCH-DGTR/L-D-SH-JHP (472)

DGN-W ±0.1
Double-Sided Inserts with
Central Ridged Chipformer for RE
Parting and Grooving Hard CW INSL
Materials and Interrupted Cuts

Recommended
Dimensions Tough 1 Hard
Machining Data

f groove
Designation CW RE CWTOL (1) RETOL (2) INSL IC328 IC1030 IC354 (mm/rev)
DGN 5003W 5.00 0.30 0.04 0.030 19.00 • • • 0.12-0.33
• No depth limit • For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
For tools, see pages: C#-HELIR/L (265) • C#-HFIR/L-MC (573) • CR HFIR-M (575) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515)
• DGFH (268) • DGFH-JHP (269) • DGTR/L (476) • HELIR/L (266) • HFAER/L-5T, 6T (566) • HFAIR/L-DG (573) • HFFR/L-T (564) • HFHR/L-5T (560)
• HFIR/L-MC (574) • HFPAD-5 (563) • HFPAD-JHP (562) • HGPAD (267) • HGPAD-JHP (267) • IM-HFIR-MC (574) • NQCH-DGTR/L-D-SH-JHP (472)
