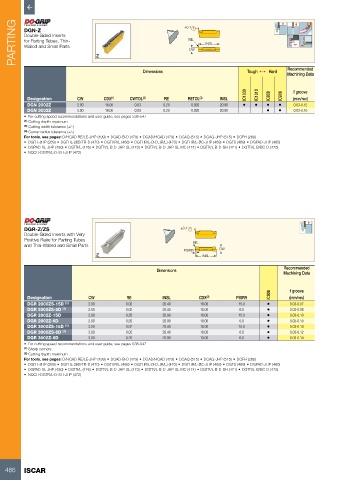

Page 488 - ISCAR(TURNING-CATALOG-42-2022)

PARTING DGN-Z ±0.1 CW INSL

Double-Sided Inserts

RE
for Parting Tubes, Thin-
Walled and Small Parts

Dimensions Tough 1 Hard Recommended
Machining Data

IC1030 IC1010 IC808 IC908 f groove
Designation CW CDX (1) CWTOL (2) RE RETOL (3) INSL (mm/rev)
DGN 2002Z 2.00 18.00 0.03 0.20 0.020 20.90 • • • • 0.03-0.12
DGN 3002Z 3.00 18.00 0.03 0.20 0.020 20.90 • • 0.03-0.16
• For cutting speed recommendations and user guide, see pages 538-547
(1) Cutting depth maximum
(2) Cutting width tolerance (+/-)
(3) Corner radius tolerance (+/-)
For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268)
• DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469) • DGPAD-JHP (480)
• DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471) • DGTR/L-B/BC-D (475)
• NQCH-DGTR/L-D-SH-JHP (472)

DGR-Z/ZS ±0.1
Double-Sided Inserts with Very
Positive Rake for Parting Tubes RE
and Thin-Walled and Small Parts
PSIRR CW
INSL

Dimensions Recommended
Machining Data

IC908 f groove
Designation CW RE INSL CDX (2) PSIRR (mm/rev)
DGR 2000ZS-15D (1) 2.00 0.02 20.40 18.00 15.0 • 0.03-0.07
DGR 2000ZS-6D (1) 2.00 0.02 20.40 18.00 6.0 • 0.03-0.08
DGR 2002Z-15D 2.00 0.20 20.90 18.00 15.0 • 0.03-0.10
DGR 2002Z-6D 2.00 0.20 20.90 18.00 6.0 • 0.03-0.10
DGR 3000ZS-15D (1) 3.00 0.02 20.40 18.00 15.0 • 0.03-0.10
DGR 3000ZS-6D (1) 3.00 0.02 20.40 18.00 6.0 • 0.03-0.12
DGR 3002Z-6D 3.00 0.20 20.90 18.00 6.0 • 0.03-0.14
• For cutting speed recommendations and user guide, see pages 538-547
(1) Sharp corners
(2) Cutting depth maximum
For tools, see pages: D/HGAD RE/LE-JHP (499) • DGAD-B-D (479) • DGAD/HGAD (479) • DGAQ (515) • DGAQ-JHP (515) • DGFH (268)
• DGFH-JHP (269) • DGFHL-26B-TR-D (470) • DGFHR/L (468) • DGFHR/L-B-D..(R/L) (470) • DGFHR/L-BC-JHP (469) • DGFS (469) • DGPAD-JHP (480)
• DGPAD-XL-JHP (480) • DGTR/L (476) • DGTR/L-B-D-JHP-SL (473) • DGTR/L-B-D-JHP-SL-MC (474) • DGTR/L-B-D-SH (471) • DGTR/L-B/BC-D (475)
• NQCH-DGTR/L-D-SH-JHP (472)

486 ISCAR
