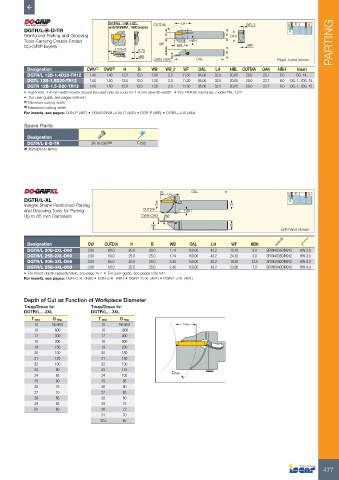

Page 479 - ISCAR(TURNING-CATALOG-42-2022)

DGTR/L..12B-1.5D... CUTDIA LH WB_2
DGTR/L-B-D-TR with DGN/R/L 1000 inserts
Reinforced Parting and Grooving H H OAH
Tools Carrying Double-Ended WF HBH PARTING
DO-GRIP Inserts HBL WB
CDX=3 0.75 B
WB
CWN-CWX OAL Right -hand shown
Designation CWN (1) CWX (2) H B WB WB_2 WF OAL LH HBL CUTDIA OAH HBH Insert
DGTR/L 12B-1.4D20-TR12 1.40 1.40 12.0 12.0 1.00 2.3 11.50 95.00 32.5 20.00 20.0 23.7 8.0 DG. 14..
DGTL 12B-1.5D20-TR12 1.00 1.50 12.0 12.0 1.20 2.3 11.30 95.00 32.5 20.00 20.0 23.7 8.0 DG. 1.../DG. 15..
DGTR 12B-1.5-D20-TR12 1.00 1.50 12.0 12.0 1.20 2.3 11.30 95.00 32.5 20.00 20.0 23.7 8.0 DG. 1.../DG. 15..
• Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width! • For TRAUB machines, model TNL 12/7
• For user guide, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
For inserts, see pages: DGN-P (487) • DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR/L-J/JS (484)

Spare Parts

Designation
DGTR/L-B-D-TR SR 16-236 P (a) T-15/5
(a) 3N*M(26.5LBF*in)

LH OAL
DGTR/L-XL
Integral Shank Reinforced Parting H H
and Grooving Tools for Parting CUTDIA HBH
Up to 65 mm Diameters CWN-CWX WB
WF B
Left-hand shown

Designation CW CUTDIA H B WB OAL LH WF HBH
DGTR/L 20B-2XL-D60 2.00 60.0 20.0 20.0 1.74 150.00 43.2 19.10 8.0 SR M4X35DIN912 HW 3.0
DGTR/L 25B-2XL-D60 2.00 60.0 25.0 25.0 1.74 150.00 43.2 24.10 3.0 SR M4X35DIN912 HW 3.0
DGTR/L 20B-3XL-D65 3.00 65.0 20.0 20.0 2.40 150.00 43.2 18.80 12.0 SR M5X40DIN912 HW 4.0
DGTR/L 25B-3XL-D65 3.00 65.0 25.0 25.0 2.40 150.00 43.2 23.80 7.0 SR M5X40DIN912 HW 4.0
• For insert depth capacity table, see page 477 • For user guide, see pages 538-547
For inserts, see pages: DGN-C-XL (490) • DGN-J-XL (491) • DGR/L-C-XL (491) • DGR/L-J-XL (491)

Depth of Cut as Function of Workpiece Diameter
Tmax/Dmax for Tmax/Dmax for
DGTR/L...-2XL DGTR/L...-3XL
T max D max T max D max
15 No limit 15 No limit Tmax
16 600 16 1000
17 300 17 400
18 200 18 300
19 150 19 230
20 130 20 180
21 120 21 150
22 100 22 130
23 90 23 115 Dmax
24 85 24 105
25 80 25 95
26 75 26 90
27 70 27 85
28 65 28 80
29 63 29 75
30 60 30 72
31 70
32.5 65
