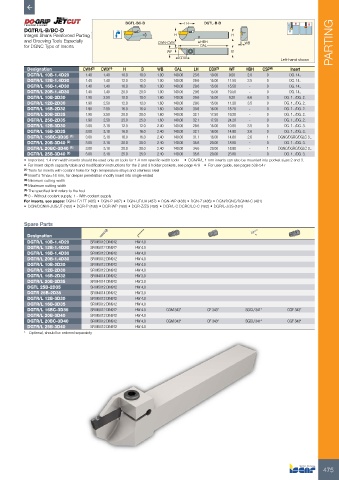

Page 477 - ISCAR(TURNING-CATALOG-42-2022)

DGTL-BC-D LH DGTL-B-D
DGTR/L-B/BC-D
Integral Shank Reinforced Parting H H
and Grooving Tools Especially CWN-CWX HBH WB PARTING
for DGNC Type of Inserts OAL
WF B
CDX Left-hand shown
Designation CWN (3) CWX (4) H B WB OAL LH CDX (5) WF HBH CSP (6) Insert
DGTR/L 10B-1.4D20 1.40 1.40 10.0 10.0 1.00 140.00 23.6 10.00 9.50 2.0 0 DG. 14..
DGTR/L 12B-1.4D30 1.40 1.40 12.0 12.0 1.00 140.00 29.6 15.00 11.50 3.5 0 DG. 14..
DGTR/L 16B-1.4D30 1.40 1.40 16.0 16.0 1.00 140.00 29.6 15.00 15.50 - 0 DG. 14..
DGTR/L 20B-1.4D30 1.40 1.40 20.0 20.0 1.00 140.00 29.6 15.00 19.50 - 0 DG. 14..
DGTR/L 10B-2D30 1.90 2.50 10.0 10.0 1.60 140.00 29.6 15.00 9.20 6.6 0 DG. 1.../DG. 2..
DGTR/L 12B-2D30 1.90 2.50 12.0 12.0 1.60 140.00 29.6 15.00 11.20 3.5 0 DG. 1.../DG. 2..
DGTR/L 16B-2D32 1.90 2.50 16.0 16.0 1.60 140.00 30.6 16.00 15.20 - 0 DG. 1.../DG. 2..
DGTR/L 20B-2D35 1.90 2.50 20.0 20.0 1.60 140.00 32.1 17.50 19.20 - 0 DG. 1.../DG. 2..
DGTR/L 25B-2D35 1.90 2.50 25.0 25.0 1.60 140.00 32.1 17.50 24.20 - 0 DG. 1.../DG. 2..
DGTR/L 12B-3D30 3.00 3.18 12.0 12.0 2.40 140.00 29.6 15.00 10.80 3.5 0 DG. 1.../DG. 3..
DGTR/L 16B-3D35 3.00 3.18 16.0 16.0 2.40 140.00 32.1 16.00 14.80 2.6 0 DG. 1.../DG. 3..
DGTR/L 16BC-3D35 (1) 3.00 3.18 16.0 16.0 2.40 140.00 31.1 16.00 14.80 2.6 1 DGNC/DGRC/DGLC 3...
DGTR/L 20B-3D40 (2) 3.00 3.18 20.0 20.0 2.40 140.00 35.6 20.00 18.80 - 0 DG. 1.../DG. 3..
DGTR/L 20BC-3D40 (1) 3.00 3.18 20.0 20.0 2.40 140.00 34.6 20.00 18.80 - 1 DGNC/DGRC/DGLC 3...
DGTR/L 25B-3D40 (2) 3.00 3.18 25.0 25.0 2.40 140.00 35.6 20.00 23.80 - 0 DG. 1.../DG. 3..
• Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width tools • DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3.
• For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, see page 479 • For user guide, see pages 538-547
(1) Tools for inserts with coolant holes for high temperature alloys and stainless steel
(2) Insert's Tmax=18 mm, for deeper penetration modify insert into single-ended
(3) Minimum cutting width
(4) Maximum cutting width
(5) The specified limit refers to the tool
(6) 0 - Without coolant supply, 1 - With coolant supply
For inserts, see pages: DGN-LF/LFT (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)
• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

Spare Parts

Designation
DGTR/L 10B-1.4D20 SR M5X12 DIN912 HW 4.0
DGTR/L 12B-1.4D30 SR M5X12 DIN912 HW 4.0
DGTR/L 16B-1.4D30 SR M5X12 DIN912 HW 4.0
DGTR/L 20B-1.4D30 SR M5X12 DIN912 HW 4.0
DGTR/L 10B-2D30 SR M5X12 DIN912 HW 4.0
DGTR/L 12B-2D30 SR M5X12 DIN912 HW 4.0
DGTR/L 16B-2D32 SR M4X14 DIN912 HW 3.0
DGTR/L 20B-2D35 SR M4X14 DIN912 HW 3.0
DGTL 25B-2D35 SR M5X12 DIN912 HW 4.0
DGTR 25B-2D35 SR M4X14 DIN912 HW 3.0
DGTR/L 12B-3D30 SR M5X12 DIN912 HW 4.0
DGTR/L 16B-3D35 SR M5X12 DIN912 HW 4.0
DGTR/L 16BC-3D35 SR M5X12 DIN912 HW 4.0 CGM 343* CF 343* SGCU 341* CGF 343*
DGTR/L 20B-3D40 SR M5X12 DIN912 HW 4.0
DGTR/L 20BC-3D40 SR M5X12 DIN912 HW 4.0 CGM 343* CF 343* SGCU 341* CGF 343*
DGTR/L 25B-3D40 SR M5X12 DIN912 HW 4.0
* Optional, should be ordered separately
