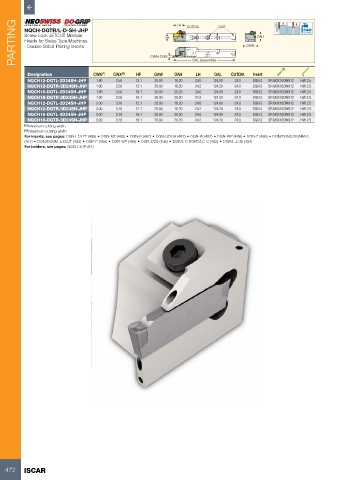

Page 474 - ISCAR(TURNING-CATALOG-42-2022)

PARTING NQCH-DGTR/L-D-SH-JHP CWN-CWX HF LH CUTDIA CNT OAW OAH Bar Max
Screw Lock JETCUT Modular
Heads for Swiss Type Machines
- Double-Sided Parting Inserts

LH
Designation CWN (1) CWX (2) HF OAW OAH OAL (assembly) OAL CUTDIA Insert
NQCH12-DGTL-2D24SH-JHP 1.90 2.50 12.1 20.00 16.20 24.0 124.00 24.0 DGN 2 SR M3X10DIN912 HW 2.5
NQCH12-DGTR-2D24SH-JHP 1.90 2.50 12.1 20.00 16.20 24.2 124.20 24.0 DGN 2 SR M3X10DIN912 HW 2.5
NQCH16-DGTL-2D24SH-JHP 1.90 2.50 16.1 20.00 20.20 24.0 124.00 24.0 DGN 2 SR M3X10DIN912 HW 2.5
NQCH16-DGTR-2D24SH-JHP 1.90 2.50 16.1 20.00 20.20 24.2 124.20 24.0 DGN 2 SR M3X10DIN912 HW 2.5
NQCH12-DGTL-3D24SH-JHP 3.00 3.18 12.1 20.00 16.20 24.0 124.00 24.0 DGN 3 SR M3X10DIN912 HW 2.5
NQCH12-DGTR-3D24SH-JHP 3.00 3.18 12.1 20.00 16.20 24.2 124.20 24.0 DGN 3 SR M3X10DIN912 HW 2.5
NQCH16-DGTL-3D24SH-JHP 3.00 3.18 16.1 20.00 20.20 24.0 124.00 24.0 DGN 3 SR M3X10DIN912 HW 2.5
NQCH16-DGTR-3D24SH-JHP 3.00 3.18 16.1 20.00 20.20 24.2 124.20 24.0 DGN 3 SR M3X10DIN912 HW 2.5
(1) Minimum cutting width
(2) Maximum cutting width
For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-W (482) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C
(481) • DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)
For holders, see pages: NQCH-JHP (61)
