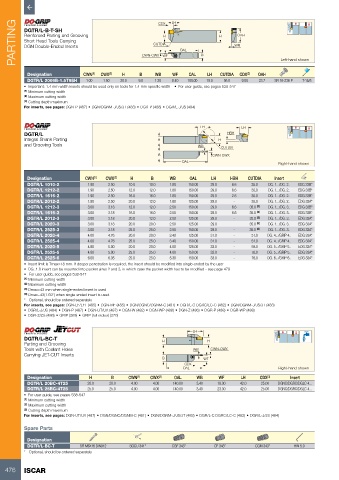

Page 478 - ISCAR(TURNING-CATALOG-42-2022)

PARTING DGTR/L-B-T-SH CWN-CWX WF LH OAL B H WB
CDX
Reinforced Parting and Grooving
OAH
H
Short Head Tools Carrying
CUTDIA
DGN Double-Ended Inserts

Designation CWN (1) CWX (2) H B WB WF OAL LH CUTDIA CDX (3) OAH Left-hand shown
DGTR/L 2009B-1.5T9SH 1.00 1.50 20.0 9.0 1.20 8.40 100.00 19.0 95.0 9.00 23.7 SR 16-236 P T-15/5
• Important: 1.4 mm width inserts should be used only on tools for 1.4 mm specific width • For user guide, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
For inserts, see pages: DGN-P (487) • DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR/L-J/JS (484)

LH LH

DGTR/L HBH
Integral Shank Parting H H
and Grooving Tools WB CUTDIA
B CWN-CWX
OAL
Right-hand shown
Designation CWN (1) CWX (2) H B WB OAL LH HBH CUTDIA Insert
DGTR/L 1010-2 1.90 2.50 10.0 10.0 1.80 150.00 29.0 6.6 35.0 DG. 1.../DG. 2.. EDG 33B*
DGTR/L 1212-2 1.90 2.50 12.0 12.0 1.80 150.00 29.0 6.6 35.0 DG. 1.../DG. 2.. EDG 33B*
DGTR/L 1616-2 1.90 2.50 16.0 16.0 1.80 150.00 29.0 2.6 35.0 DG. 1.../DG. 2.. EDG 33B*
DGTR/L 2012-2 1.90 2.50 20.0 12.0 1.80 125.00 29.0 - 35.0 DG. 1.../DG. 2.. EDG 33A*
DGTR/L 1212-3 3.00 3.18 12.0 12.0 2.50 150.00 29.0 6.6 35.0 (3) DG. 1.../DG. 3.. EDG 33B*
DGTR/L 1616-3 3.00 3.18 16.0 16.0 2.50 150.00 29.0 6.6 35.0 (4) DG. 1.../DG. 3.. EDG 33B*
DGTR/L 2012-3 3.00 3.18 20.0 12.0 2.50 125.00 29.0 - 35.0 DG. 1.../DG. 3.. EDG 33A*
(3)
(3)
DGTR/L 2020-3 3.00 3.18 20.0 20.0 2.50 125.00 29.0 - 35.0 DG. 1.../DG. 3.. EDG 33A*
(3)
DGTR/L 2525-3 3.00 3.18 25.0 25.0 2.50 150.00 29.0 - 35.0 DG. 1.../DG. 3.. EDG 33A*
DGTR/L 2020-4 4.00 4.76 20.0 20.0 3.40 125.00 31.0 - 51.0 DG. 4.../GRIP 4.. EDG 33A*
DGTR/L 2525-4 4.00 4.76 25.0 25.0 3.40 150.00 31.0 - 51.0 DG. 4.../GRIP 4.. EDG 33A*
DGTR/L 2020-5 4.80 5.00 20.0 20.0 4.00 125.00 33.0 - 59.0 DG. 5.../GRIP 5.. EDG 33A*
DGTR/L 2525-5 4.80 5.00 25.0 25.0 4.00 150.00 33.0 - 76.0 DG. 5.../GRIP 5.. EDG 33A*
DGTR/L 2525-6 6.00 6.35 25.0 25.0 5.30 150.00 33.0 - 76.0 DG. 6.../GRIP 6.. EDG 33A*
• Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user
• DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified - see page 479
• For user guide, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
(3) Dmax=43 mm when single-ended insert is used
(4) Dmax=43(1.69") when single-ended insert is used
* Optional, should be ordered separately
For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN/DGNC/DGNM-C (481) • DGR/L-C DGRC/LC-C (482) • DGN/DGNM-J/JS/JT (483)
• DGR/L-J/JS (484) • DGN-P (487) • DGN-UT/UA (487) • DGN-W (482) • DGN-WP (488) • DGN-Z (486) • DGR-P (488) • DGR-WP (488)
• DGR-Z/ZS (486) • GRIP (269) • GRIP (full radius) (270)

LH

DGTR/L-BC-T H H
Parting and Grooving
Tools with Coolant Holes WB CWN-CWX
Carrying JET-CUT Inserts
B WF
CDX
OAL Right-hand shown
Designation H B CWN (1) CWX (2) OAL WB WF LH CDX (3) Insert
DGTR/L 20BC-4T25 20.0 20.0 4.00 4.00 140.00 3.40 18.30 42.0 25.00 DGNC/DGRC/DGLC 4...
DGTR/L 25BC-4T25 25.0 25.0 4.00 4.00 140.00 3.40 23.30 42.0 25.00 DGNC/DGRC/DGLC 4...
• For user guide, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
(3) Cutting depth maximum
For inserts, see pages: DGN-UT/UA (487) • DGN/DGNC/DGNM-C (481) • DGN/DGNM-J/JS/JT (483) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

Spare Parts

Designation
DGTR/L-BC-T SR M6X16 DIN912 SGCU 341* CGF 343* CF 343* CGM 343* HW 5.0
* Optional, should be ordered separately

476 ISCAR
