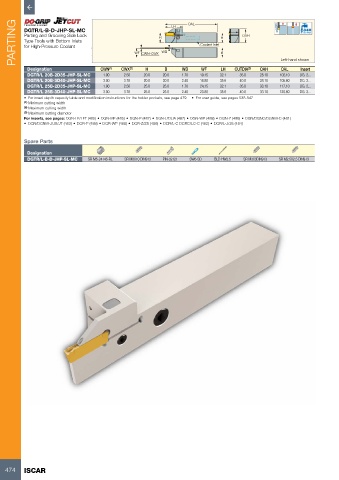

Page 476 - ISCAR(TURNING-CATALOG-42-2022)

PARTING DGTR/L-B-D-JHP-SL-MC WF CWN-CWX H WB LH OAL Coolant Inlet H B OAH Bar Max
Parting and Grooving Side Lock
Type Tools with Bottom Inlets
for High-Pressure Coolant

OAL
Insert
Designation CWN (1) CWX (2) H B WB WF LH CUTDIA (3) OAH Left-hand shown
DGTR/L 20B-2D35-JHP-SL-MC 1.90 2.50 20.0 20.0 1.70 19.15 32.1 35.0 28.10 102.10 DG. 2...
DGTR/L 20B-3D40-JHP-SL-MC 3.00 3.18 20.0 20.0 2.40 18.80 35.6 40.0 28.10 105.60 DG. 3...
DGTR/L 25B-2D35-JHP-SL-MC 1.90 2.50 25.0 25.0 1.70 24.15 32.1 35.0 33.10 117.10 DG. 2...
DGTR/L 25B-3D40-JHP-SL-MC 3.00 3.18 25.0 25.0 2.40 23.80 35.6 40.0 33.10 120.60 DG. 3...
• For insert depth capacity table and modification instructions for the holder pockets, see page 479 • For user guide, see pages 538-547
(1) Minimum cutting width
(2) Maximum cutting width
(3) Maximum cutting diameter
For inserts, see pages: DGN-LF/LFT (485) • DGN-MF (485) • DGN-P (487) • DGN-UT/UA (487) • DGN-WP (488) • DGN-Z (486) • DGN/DGNC/DGNM-C (481)
• DGN/DGNM-J/JS/JT (483) • DGR-P (488) • DGR-WP (488) • DGR-Z/ZS (486) • DGR/L-C DGRC/LC-C (482) • DGR/L-J/JS (484)

Spare Parts

Designation
DGTR/L-B-D-JHP-SL-MC SR M5-24145-RL SR M8X10 DIN913 PIN-32121 SW6-SD BLD HW2.5 SR M3X3DIN913 SR M2.5X2.5 DIN913
