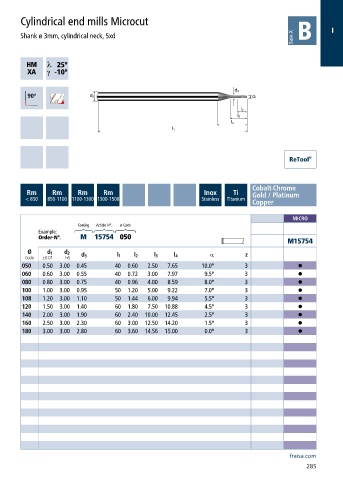

Cylindrical end mills Microcut
I
Shank ø 3mm, cylindrical neck, 5xd
h ƍ
a ƍ
Cobalt-Chrome
Rm Rm Rm Rm Inox Ti Gold / Platinum
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
Copper
MICRO
Coating Article-N°. ø-Code
Example:
Order-N°. M 15754 050
M15754
Ø d 1 d 2 α
Code ±0.01 h6 d 3 l 1 l 2 l 3 l 4 z
050 0.50 3.00 0.45 40 0.60 2.50 7.65 10.0° 3 •
060 0.60 3.00 0.55 40 0.72 3.00 7.97 9.5° 3 •
080 0.80 3.00 0.75 40 0.96 4.00 8.59 8.0° 3 •
100 1.00 3.00 0.95 50 1.20 5.00 9.22 7.0° 3 •
108 1.20 3.00 1.10 50 1.44 6.00 9.94 5.5° 3 •
120 1.50 3.00 1.40 60 1.80 7.50 10.88 4.5° 3 •
140 2.00 3.00 1.90 60 2.40 10.00 12.45 2.5° 3 •
160 2.50 3.00 2.30 60 3.00 12.50 14.20 1.5° 3 •
180 3.00 3.00 2.80 60 3.60 14.56 15.00 0.0° 3 •
