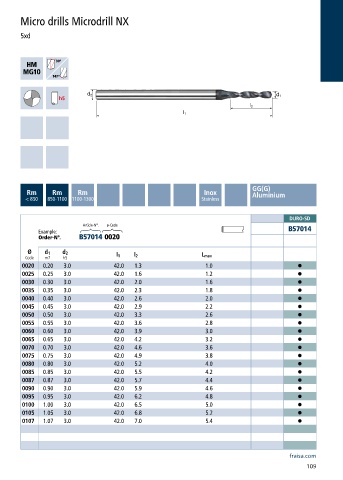

Page 111 - Carbide drills I Thread cutting tools 2023

Micro drills Microdrill NX

5xd

30º

147º

GG(G)
Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 Stainless

DURO-SD
Article-N°. ø-Code
Example: B57014
Order-N°. B57014 0020
Ø d 1 d 2
Code m7 h5 l 1 l 2 L max
0020 0.20 3.0 42.0 1.3 1.0 •
0025 0.25 3.0 42.0 1.6 1.2 •
0030 0.30 3.0 42.0 2.0 1.6 •
0035 0.35 3.0 42.0 2.3 1.8 •
0040 0.40 3.0 42.0 2.6 2.0 •
0045 0.45 3.0 42.0 2.9 2.2 •
0050 0.50 3.0 42.0 3.3 2.6 •
0055 0.55 3.0 42.0 3.6 2.8 •
0060 0.60 3.0 42.0 3.9 3.0 •
0065 0.65 3.0 42.0 4.2 3.2 •
0070 0.70 3.0 42.0 4.6 3.6 •
0075 0.75 3.0 42.0 4.9 3.8 •
0080 0.80 3.0 42.0 5.2 4.0 •
0085 0.85 3.0 42.0 5.5 4.2 •
0087 0.87 3.0 42.0 5.7 4.4 •
0090 0.90 3.0 42.0 5.9 4.6 •
0095 0.95 3.0 42.0 6.2 4.8 •
0100 1.00 3.0 42.0 6.5 5.0 •
0105 1.05 3.0 42.0 6.8 5.2 •
0107 1.07 3.0 42.0 7.0 5.4 •

fraisa.com
109
