Page 115 - Carbide drills I Thread cutting tools 2023

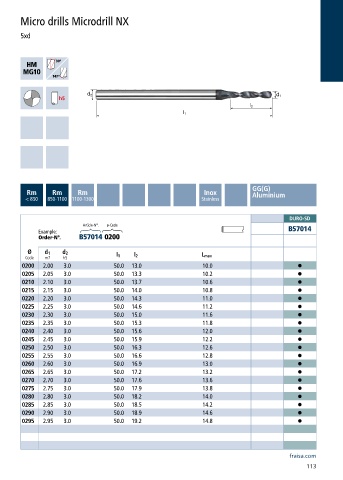

Micro drills Microdrill NX

5xd

30º

147º

GG(G)
Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 Stainless

DURO-SD
Article-N°. ø-Code
Example: B57014
Order-N°. B57014 0200
Ø d 1 d 2
Code m7 h5 l 1 l 2 L max
0200 2.00 3.0 50.0 13.0 10.0 •
0205 2.05 3.0 50.0 13.3 10.2 •
0210 2.10 3.0 50.0 13.7 10.6 •
0215 2.15 3.0 50.0 14.0 10.8 •
0220 2.20 3.0 50.0 14.3 11.0 •
0225 2.25 3.0 50.0 14.6 11.2 •
0230 2.30 3.0 50.0 15.0 11.6 •
0235 2.35 3.0 50.0 15.3 11.8 •
0240 2.40 3.0 50.0 15.6 12.0 •
0245 2.45 3.0 50.0 15.9 12.2 •
0250 2.50 3.0 50.0 16.3 12.6 •
0255 2.55 3.0 50.0 16.6 12.8 •
0260 2.60 3.0 50.0 16.9 13.0 •
0265 2.65 3.0 50.0 17.2 13.2 •
0270 2.70 3.0 50.0 17.6 13.6 •
0275 2.75 3.0 50.0 17.9 13.8 •
0280 2.80 3.0 50.0 18.2 14.0 •
0285 2.85 3.0 50.0 18.5 14.2 •
0290 2.90 3.0 50.0 18.9 14.6 •
0295 2.95 3.0 50.0 19.2 14.8 •

fraisa.com
113
