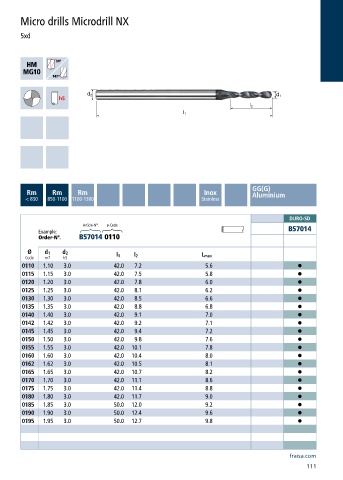

Page 113 - Carbide drills I Thread cutting tools 2023

Micro drills Microdrill NX

5xd

30º

147º

GG(G)
Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 Stainless

DURO-SD
Article-N°. ø-Code
Example: B57014
Order-N°. B57014 0110
Ø d 1 d 2
Code m7 h5 l 1 l 2 L max
0110 1.10 3.0 42.0 7.2 5.6 •
0115 1.15 3.0 42.0 7.5 5.8 •
0120 1.20 3.0 42.0 7.8 6.0 •
0125 1.25 3.0 42.0 8.1 6.2 •
0130 1.30 3.0 42.0 8.5 6.6 •
0135 1.35 3.0 42.0 8.8 6.8 •
0140 1.40 3.0 42.0 9.1 7.0 •
0142 1.42 3.0 42.0 9.2 7.1 •
0145 1.45 3.0 42.0 9.4 7.2 •
0150 1.50 3.0 42.0 9.8 7.6 •
0155 1.55 3.0 42.0 10.1 7.8 •
0160 1.60 3.0 42.0 10.4 8.0 •
0162 1.62 3.0 42.0 10.5 8.1 •
0165 1.65 3.0 42.0 10.7 8.2 •
0170 1.70 3.0 42.0 11.1 8.6 •
0175 1.75 3.0 42.0 11.4 8.8 •
0180 1.80 3.0 42.0 11.7 9.0 •
0185 1.85 3.0 50.0 12.0 9.2 •
0190 1.90 3.0 50.0 12.4 9.6 •
0195 1.95 3.0 50.0 12.7 9.8 •

fraisa.com
111
