Page 377 - ISCAR(MILLINGCATALOG 38_2021)

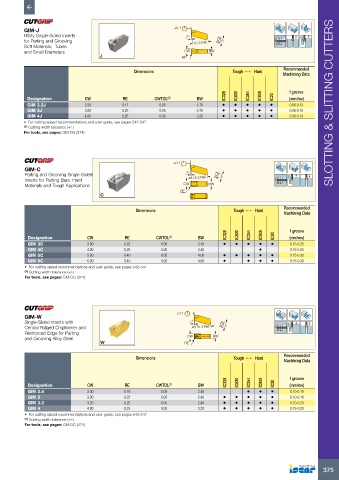

P. 377

±0.1
         GIM-J
         Utility Single-Sided Inserts                             7°
         for Parting and Grooving                                    15.3 Ref.  5
         Soft Materials,  Tubes
         and Small Diameters                                      CW      BW
                                                                 RE

                                                Dimensions                         Tough 1   Hard    Recommended
                                                                                                    Machining Data


                                                                                IC328  IC830  IC354  IC908  f groove
           Designation         CW           RE         CWTOL (1)      BW                         IC20  (mm/rev)
           GIM 2.2J            2.20         0.17         0.05         1.70     •   •   •    •   •      0.06-0.13      SLOTTING & SLITTING CUTTERS
           GIM 3J              3.00         0.25         0.05         2.40     •   •   •    •   •      0.08-0.15
           GIM 4J              4.00         0.25         0.05         3.20     •   •   •    •   •      0.08-0.18
         •  For cutting speed recommendations and user guide, see pages 542-547
         (1)  Cutting width tolerance (+/-)
         For tools, see pages: GM-DG (374)




                                                              ±0.1

          GIM-C
          Parting and Grooving Single-Sided                       7°  15.3 Ref.  5
          Inserts for Parting Bars, Hard
          Materials and Tough Applications                        CW      BW
                                                                RE


                                                                                                     Recommended
                                                 Dimensions                        Tough 1   Hard
                                                                                                     Machining Data

                                                                                IC328  IC830  IC354  IC908  f groove
           Designation          CW           RE         CWTOL (1)      BW                        IC20  (mm/rev)
           GIM 3C               3.00         0.22         0.05         2.40    •    •   •   •   •      0.15-0.25
           GIM 4C               4.00         0.25         0.05         3.40                 •          0.15-0.25
           GIM 5C               5.00         0.40         0.05         4.00    •    •   •   •   •      0.15-0.30
           GIM 6C               6.00         0.40         0.05         4.80    •        •   •   •      0.15-0.30
          •  For cutting speed recommendations and user guide, see pages 542-547
          (1)  Cutting width tolerance (+/-)
          For tools, see pages: GM-DG (374)





                                                               ±0.1
          GIM-W
          Single-Sided Inserts with                                 7°
          Central Ridged Chipformer and                               15.3 Ref.  5
          Reinforced Edge for Parting
          and Grooving Alloy Steel                                 CW       BW
                                                                  RE
                                                                                                     Recommended
                                                 Dimensions                        Tough 1   Hard    Machining Data



                                                                                IC328  IC830  IC354  IC908  IC20  f groove
           Designation          CW           RE         CWTOL (1)      BW                              (mm/rev)
           GIM 2.4              2.40         0.18         0.05         2.40             •   •   •      0.10-0.18
           GIM 3                3.00         0.22         0.05         2.40    •    •   •   •   •      0.10-0.18
           GIM 3.2              3.20         0.22         0.05         2.40    •    •   •   •   •      0.10-0.20
           GIM 4                4.00         0.25         0.05         3.20    •    •   •   •   •      0.15-0.20
          •  For cutting speed recommendations and user guide, see pages 542-547
          (1)  Cutting width tolerance (+/-)
          For tools, see pages: GM-DG (374)







                                                                                                                   375
