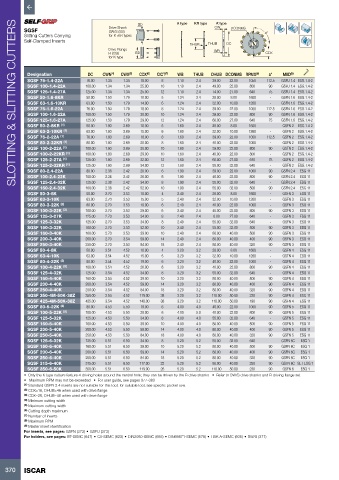

Page 372 - ISCAR(MILLINGCATALOG 38_2021)

SLOTTING & SLITTING CUTTERS
BD A type KR type K type
Drive Shank CW
SGSF SW/S (SS) DCONMS
Slitting Cutters Carrying for K+KR types a°
Self-Clamped Inserts
DHUB THUB DC
Drive Flange WB
R (CSI) BD CDX
for K type

Designation DC CWN (4) CWX (5) CDX (6) CICT (7) WB THUB DHUB DCONMS RPMX (8) a° MIID (9)
SGSF 76-1.4-22A 76.00 1.34 1.34 18.00 8 1.10 2.4 39.00 22.00 1050 112.5 GSFU 1.4 ESG 1.4-2
SGSF 100-1.4-22A 100.00 1.34 1.34 25.00 10 1.10 2.4 49.00 22.00 800 90 GSFU 1.4 ESG 1.4-2
SGSF 125-1.4-27A 125.00 1.34 1.34 25.00 12 1.10 2.4 74.00 27.00 640 75 GSFU 1.4 ESG 1.4-2
SGSF 50-1.6-8KR 50.00 1.50 1.79 10.00 5 1.24 2.4 28.00 8.00 1600 - GSFN 1.6 ESG 1.4-2
SGSF 63-1.6-10KR 63.00 1.50 1.79 14.00 6 1.24 2.4 32.00 10.00 1260 - GSFN 1.6 ESG 1.4-2
SGSF 76-1.6-22A 76.00 1.50 1.79 18.00 8 1.24 2.4 39.00 22.00 1050 112.5 GSFN 1.6 ESG 1.4-2
SGSF 100-1.6-22A 100.00 1.50 1.79 30.00 10 1.24 2.4 39.00 22.00 800 90 GSFN 1.6 ESG 1.4-2
SGSF 125-1.6-27A 125.00 1.50 1.79 29.00 12 1.24 2.4 60.00 27.00 640 75 GSFN 1.6 ESG 1.4-2
SGSF 50-2-8KR (1) 50.00 1.80 2.69 10.00 5 1.60 2.4 28.00 8.00 1600 - GSFN 2 ESG 1.4-2
SGSF 63-2-10KR (1) 63.00 1.80 2.69 15.00 6 1.60 2.4 32.00 10.00 1260 - GSFN 2 ESG 1.4-2
SGSF 76-2-22A (1) 76.00 1.80 2.69 18.00 8 1.60 2.4 39.00 22.00 1050 112.5 GSFN 2 ESG 1.4-2
SGSF 80-2-22KR (1) 80.00 1.80 2.69 20.00 8 1.60 2.4 40.00 22.00 1000 - GSFN 2 ESG 1.4-2
SGSF 100-2-22A (1) 100.00 1.80 2.69 30.00 10 1.60 2.4 39.00 22.00 800 90 GSFN 2 ESG 1.4-2
SGSF 100-2-22KR (1) 100.00 1.80 2.69 29.00 10 1.60 2.4 40.00 22.00 800 - GSFN 2 ESG 1.4-2
SGSF 125-2-27A (1) 125.00 1.80 2.69 32.00 12 1.60 2.4 60.00 27.00 640 75 GSFN 2 ESG 1.4-2
SGSF 125-2-32KR (1) 125.00 1.80 2.69 34.00 12 1.60 2.4 55.00 32.00 640 - GSFN 2 ESG 1.4-2
SGSF 80-2.4-22A 80.00 2.38 2.42 20.00 6 1.90 2.4 39.00 22.00 1000 90 GSFN 2.4 ESG 11
SGSF 100-2.4-22K 100.00 2.38 2.42 26.00 6 1.90 2.4 46.00 22.00 800 90 GSFN 2.4 ESG 11
SGSF 125-2.4-32K 125.00 2.38 2.42 34.00 8 1.90 2.4 55.00 32.00 640 - GSFN 2.4 ESG 11
SGSF 160-2.4-32K 160.00 2.38 2.42 52.00 10 1.90 2.4 55.00 32.00 500 90 GSFN 2.4 ESG 11
SGSF 50-3-8K 50.00 2.70 3.53 10.00 4 2.40 2.4 28.00 8.00 1600 - GSFN 3 ESG 11
SGSF 63-3-10K 63.00 2.70 3.53 15.00 5 2.40 2.4 32.00 10.00 1260 - GSFN 3 ESG 11
SGSF 80-3-22K (2) 80.00 2.70 3.53 19.00 6 2.40 2.4 40.00 22.00 1000 - GSFN 3 ESG 11
SGSF 100-3-22K (3) 100.00 2.70 3.53 29.00 6 2.40 2.4 40.00 22.00 800 90 GSFN 3 ESG 11
SGSF 125-3-27K 125.00 2.70 3.53 34.00 8 2.40 2.4 0.00 27.00 640 - GSFN 3 ESG 11
SGSF 125-3-32K 125.00 2.70 3.53 34.00 8 2.40 2.4 55.00 32.00 640 - GSFN 3 ESG 11
SGSF 160-3-32K 160.00 2.70 3.53 52.00 10 2.40 2.4 55.00 32.00 500 90 GSFN 3 ESG 11
SGSF 160-3-40K 160.00 2.70 3.53 39.00 10 2.40 2.4 80.00 40.00 500 90 GSFN 3 ESG 11
SGSF 200-3-40K 200.00 2.70 3.54 59.00 14 2.40 2.4 80.00 40.00 400 90 GSFN 3 ESG 11
SGSF 250-3-40K 250.00 2.70 3.53 84.00 18 2.40 2.4 80.00 40.00 320 90 GSFN 3 ESG 11
SGSF 50-4-8K 50.00 3.54 4.52 10.00 4 3.20 3.2 28.00 8.00 1600 - GSFN 4 ESG 11
SGSF 63-4-10K 63.00 3.54 4.52 15.00 5 3.20 3.2 32.00 10.00 1260 - GSFN 4 ESG 11
SGSF 80-4-22K (2) 80.00 3.54 4.52 19.00 6 3.20 3.2 40.00 22.00 1000 - GSFN 4 ESG 11
SGSF 100-4-22K (3) 100.00 3.54 4.52 26.00 6 3.20 3.2 40.00 22.00 800 90 GSFN 4 ESG 11
SGSF 125-4-32K 125.00 3.54 4.52 34.00 8 3.20 3.2 55.00 32.00 640 - GSFN 4 ESG 11
SGSF 160-4-40K 160.00 3.54 4.52 39.00 10 3.20 3.2 80.00 40.00 500 90 GSFN 4 ESG 11
SGSF 200-4-40K 200.00 3.54 4.52 59.00 14 3.20 3.2 80.00 40.00 400 90 GSFN 4 ESG 11
SGSF 250-4-40K 250.00 3.54 4.52 84.00 18 3.20 3.2 80.00 40.00 320 90 GSFN 4 ESG 11
SGSF 350-4M-50K-38Z 350.00 3.54 4.52 119.00 38 3.20 3.2 110.00 50.00 230 90 GSFN 4 ESG 11
SGSF 425-4M-50K-38Z 425.00 3.54 4.52 140.00 38 3.20 3.2 110.00 50.00 190 90 GSFN 4 ESG 11
SGSF 80-5-22K (2) 80.00 4.53 5.50 19.00 6 4.00 4.0 40.00 22.00 1000 90 GSFN 5 ESG 11
SGSF 100-5-22K (3) 100.00 4.53 5.50 29.00 6 4.00 5.0 40.00 22.00 800 90 GSFN 5 ESG 11
SGSF 125-5-32K 125.00 4.53 5.50 34.00 8 4.00 4.0 55.00 32.00 640 - GSFN 5 ESG 11
SGSF 160-5-40K 160.00 4.53 5.50 39.00 10 4.00 4.0 80.00 40.00 500 90 GSFN 5 ESG 11
SGSF 200-5-40K 200.00 4.53 5.50 59.00 14 4.00 4.0 80.00 40.00 400 90 GSFN 5 ESG 11
SGSF 250-5-40K 250.00 4.53 5.50 84.00 18 4.00 4.0 80.00 40.00 320 90 GSFN 5 ESG 11
SGSF 125-6-32K 125.00 5.51 6.50 34.00 8 5.20 5.2 55.00 32.00 640 - GSFN 6C ESG 1
SGSF 160-6-40K 160.00 5.51 6.50 39.00 10 5.20 5.2 80.00 40.00 500 90 GSFN 6C ESG 1
SGSF 200-6-40K 200.00 5.51 6.50 59.00 14 5.20 5.2 80.00 40.00 400 90 GSFN 6C ESG 1
SGSF 250-6-40K 250.00 5.51 6.50 84.00 18 5.20 5.2 80.00 40.00 320 90 GSFN 6C ESG 1
SGSF 315-6-40K 315.00 5.51 6.50 117.00 22 5.20 5.2 80.00 40.00 250 90 GSFN 6C SET ESG 1
SGSF 350-6-50K 350.00 5.51 6.50 119.00 26 5.20 5.2 110.00 50.00 230 90 GSFN 6 ESG 1
• Only the K type cutters feature 4 driving holes around the central hole; they can be driven by the R drive shanks • Refer to SW/S drive shanks and R driving flange set
• Maximum RPM may not be exceeded • For user guide, see pages 377-383
(1) Standard GSFN 2.4 inserts are not suitable for this tool; for suitable tool, see specific pocket size.
(2) CDX=16, DHUB=46 when used with drive flange
(3) CDX=26, DHUB=46 when used with drive flange
(4) Minimum cutting width
(5) Maximum cutting width
(6) Cutting depth maximum
(7) Number of inserts
(8) Maximum RPM
(9) Master insert identification
For inserts, see pages: GSFN (373) • GSFU (373)
For holders, see pages: BT-SEMC (647) • C#-SEMC (623) • DIN2080-SEMC (655) • DIN69871-SEMC (578) • HSK A-SEMC (605) • SW/S (371)
