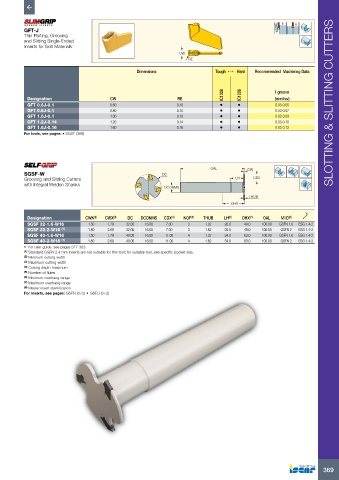

Page 371 - ISCAR(MILLINGCATALOG 38_2021)
P. 371

GFT-J
          Thin Parting, Grooving
          and Slitting Single-Ended
          Inserts for Soft Materials
                                                                CW
                                                                   RE

                                                 Dimensions                  Tough 1   Hard  Recommended  Machining Data



                                                                               IC1028  IC1008     f groove
           Designation                  CW                     RE                                 (mm/rev)
           GFT 0.6J-0.1                 0.60                   0.10           •     •             0.03-0.05           SLOTTING & SLITTING CUTTERS
           GFT 0.8J-0.1                 0.80                   0.10           •     •             0.03-0.07
           GFT 1.0J-0.1                 1.00                   0.10           •     •             0.03-0.09
           GFT 1.2J-0.14                1.20                   0.14           •     •             0.03-0.10
           GFT 1.6J-0.16                1.60                   0.16           •     •             0.03-0.12
          For tools, see pages: • SGST (368)




                                                                           OAL
                                                                                        CW
          SGSF-W                                          DC
          Grooving and Slitting Cutters                                             LH    CDX
          with Integral Weldon Shanks
                                                           DCONMS
                                                                                        THUB
                                                                                  OHX

           Designation         CWN (2)  CWX (3)  DC  DCONMS  CDX (4)  NOF (5)  THUB  LH (6)  OHX (7)  OAL  MIID (8)
           SGSF 32-1.6-W16      1.50   1.79  32.00  16.00  7.00    3     1.32   20.0   49.0  100.00  GSFN 1.6  ESG 1.4-2
           SGSF 32-2-W16  (1)   1.80   2.69  32.00  16.00  7.00    3     1.62   20.0   49.0  100.00  GSFN 2  ESG 1.4-2
           SGSF 40-1.6-W16      1.50   1.79  40.00  16.00  11.00   4     1.32   34.0   63.0  100.00  GSFN 1.6  ESG 1.4-2
           SGSF 40-2-W16  (1)   1.80   2.69  40.00  16.00  11.00   4     1.62   34.0   63.0  100.00  GSFN 2  ESG 1.4-2
          •  For user guide, see pages 377-383
          (1)  Standard GSFN 2.4 mm inserts are not suitable for this tool; for suitable tool, see specific pocket size.
          (2)  Minimum cutting width
          (3)  Maximum cutting width
          (4)  Cutting depth maximum
          (5)  Number of flutes
          (6)  Minimum overhang range
          (7)  Maximum overhang range
          (8)  Master insert identification
          For inserts, see pages: GSFN (373) • GSFU (373)
