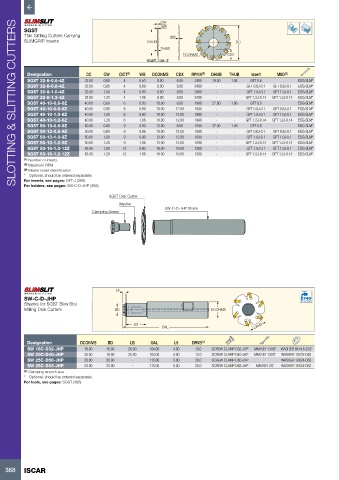

SLOTTING & SLITTING CUTTERS
CW
WB

SGST
Thin Slitting Cutters Carrying WB
SLIMGRIP Inserts DHUB DC
THUB
DCONMS CDX
SGST...-06-.Z

Designation DC CW CICT (1) WB DCONMS CDX RPMX (2) DHUB THUB Insert MIID (3)
SGST 32-8-0.6-4Z 32.00 0.60 4 0.50 8.00 6.00 2490 19.00 1.06 GFT 0.6 ESG-SLM*
SGST 32-8-0.8-4Z 32.00 0.80 4 0.69 8.00 8.00 2490 - - GFT 0.8J-0.1 GFT 0.8J-0.1 ESG-SLM*
SGST 32-8-1.0-4Z 32.00 1.00 4 0.90 8.00 8.00 2490 - - GFT 1.0J-0.1 GFT 1.0J-0.1 ESG-SLM*
SGST 32-8-1.2-4Z 32.00 1.20 4 1.06 8.00 8.00 2490 - - GFT 1.2J-0.14 GFT 1.2J-0.14 ESG-SLM*
SGST 40-10-0.6-6Z 40.00 0.60 6 0.50 10.00 6.00 1990 27.00 1.06 GFT 0.6 ESG-SLM*
SGST 40-10-0.8-6Z 40.00 0.80 6 0.69 10.00 12.00 1990 - - GFT 0.8J-0.1 GFT 0.8J-0.1 ESG-SLM*
SGST 40-10-1.0-6Z 40.00 1.00 6 0.90 10.00 12.00 1990 - - GFT 1.0J-0.1 GFT 1.0J-0.1 ESG-SLM*
SGST 40-10-1.2-6Z 40.00 1.20 6 1.06 10.00 12.00 1990 - - GFT 1.2J-0.14 GFT 1.2J-0.14 ESG-SLM*
SGST 50-13-0.6-9Z 50.00 0.60 9 0.50 13.00 6.00 1590 37.00 1.06 GFT 0.6 ESG-SLM*
SGST 50-13-0.8-9Z 50.00 0.80 9 0.69 13.00 12.50 1590 - - GFT 0.8J-0.1 GFT 0.8J-0.1 ESG-SLM*
SGST 50-13-1.0-9Z 50.00 1.00 9 0.90 13.00 12.50 1590 - - GFT 1.0J-0.1 GFT 1.0J-0.1 ESG-SLM*
SGST 50-13-1.2-9Z 50.00 1.20 9 1.06 13.00 12.50 1590 - - GFT 1.2J-0.14 GFT 1.2J-0.14 ESG-SLM*
SGST 63-16-1.0-12Z 63.00 1.00 12 0.90 16.00 19.00 1260 - - GFT 1.0J-0.1 GFT 1.0J-0.1 ESG-SLM*
SGST 63-16-1.2-12Z 63.00 1.20 12 1.06 16.00 19.00 1260 - - GFT 1.2J-0.14 GFT 1.2J-0.14 ESG-SLM*
(1) Number of inserts
(2) Maximum RPM
(3) Master insert identification
* Optional, should be ordered separately
For inserts, see pages: GFT-J (369)
For holders, see pages: SW-C-D-JHP (368)
SGST Disk Cutter
Washer
SW-C-D-JHP Shank
Clamping Screw

L8

SW-C-D-JHP
Shanks for SGST Slim Slot Bar Max
Milling Disk Cutters BD DCONMS

LB DRVS
OAL
Designation DCONMS BD LB OAL L8 DRVS (1)
SW 16C-D32-JHP 16.00 15.00 25.00 104.00 4.00 13.0 SCREW CLAMP-D32-JHP MM KEY 13X8* WASHER 8X14.5-D32
SW 20C-D40-JHP 20.00 16.00 25.00 104.00 4.00 13.0 SCREW CLAMP-D40-JHP MM KEY 13X8* WASHER 10X15-D40
SW 25C-D50-JHP 25.00 25.00 - 115.00 5.00 20.0 SCREW CLAMP-D50-JHP WASHER 13X24-D50
SW 25C-D63-JHP 25.00 25.00 - 115.00 5.00 20.0 SCREW CLAMP-D63-JHP MM KEY 20* WASHER 16X24-D63
(1) Clamping wrench size
* Optional, should be ordered separately
For tools, see pages: SGST (368)

368 ISCAR
