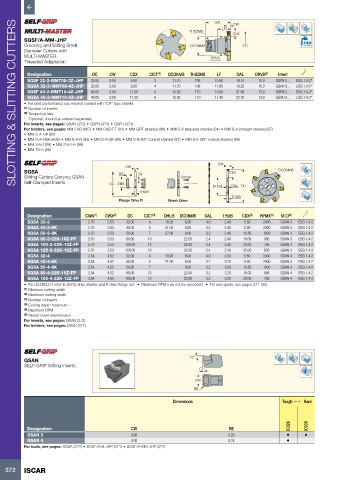

SLOTTING & SLITTING CUTTERS
                                                                            OAL
                                                                                   CW
                                                                               LF
                                                                    THSZMS
                                                                                   CDX

             SGSF/A-MM-JHP
          Grooving and Slitting Small                               DCONMS            DC                    Bar Max
          Diameter Cutters with
          MULTI-MASTER                                                     DRVS
          Threaded Adaptation
           Designation           DC    CW      CDX    CICT (1)  DCONMS  THSZMS  LF  OAL    DRVS (2)  Insert
           SGSF 32-2-MMT08-3Z-JHP  32.00  2.00  9.00   3      11.70   T08    10.60  18.10   10.0  GSFN 2...  ESG 1.4-2*
           SGSA 32-3-MMT08-4Z-JHP  32.00  3.00  9.00   4      11.70   T08    11.60  19.20   10.0  GSAN 3...  ESG 1.4-2*
           SGSF 40-2-MMT10-4Z-JHP  40.00  2.00  11.30  4      15.30   T10    10.60  21.90   13.0  GSFN 2...  ESG 1.4-2*
           SGSA 40-3-MMT10-6Z-JHP  40.00  3.00  11.30  6      15.30   T10    11.40  22.70   13.0  GSAN 3...  ESG 1.4-2*
          •  For best performance use internal coolant with "CH" type shanks
          (1)  Number of inserts
          (2)  Torque key size
          *  Optional, should be ordered separately
          For inserts, see pages: GSAN (372) • GSFN (373) • GSFU (373)
          For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87)
          •  MM S-A-C# (86)
          •  MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88)
          •  MM S-ER (89) • MM S-ER-H (89)
          •  MM TS-A (86)

                                                                             CW
                                             CW

          SGSA                             LB                                     CDX              DCONMS
          Slitting Cutters Carrying GSAN          D4             Screw
          Self-Clamped Inserts         DC DBS
                                                                            DHUB  OAL DC
                                                  THUB
                                                                                  THUB
                                           Flange Drive R   Shank Drive
           Designation         CWN (1)  CWX (2)  DC  CICT (3)  DHUB  DCONMS  OAL  THUB  CDX (4)  RPMX (5)  MIID (6)
           SGSA 32-3            2.70   3.53  32.00   4     18.20  8.00   4.0    2.40   5.50  2400   GSAN 3  ESG 1.4-2
           SGSA 40-3-6K         2.70   3.53  40.00   5     21.00  6.00   3.2    2.40   8.00  2000   GSAN 3  ESG 1.4-2
           SGSA 50-3-8K         2.70   3.53  50.00   7     27.00  8.00   3.2    2.40  10.50  1600   GSAN 3  ESG 1.4-2
           SGSA 80-3-22K-10Z-FP  2.70  3.53  80.00   10     -     22.00  2.4    2.40  16.00   995   GSAN 3  ESG 1.4-2
           SGSA 100-3-22K-12Z-FP  2.70  3.53  100.00  12    -     22.00  2.4    2.40  20.00   795   GSAN 3  ESG 1.4-2
           SGSA 125-3-32K-16Z-FP  2.70  3.53  125.00  16    -     32.00  2.4    2.40  25.00   635   GSAN 3  ESG 1.4-2
           SGSA 32-4            3.54   4.52  32.00   4     18.20  8.00   4.0    3.20   5.50  2400   GSAN 4  ESG 1.4-2
           SGSA 40-4-6K         3.54   4.52  40.00   5     21.00  6.00   3.2    3.20   8.00  2000   GSAN 4  ESG 1.4-2
           SGSA 50-4-8K         3.54   4.52  50.00   7      -     8.00   3.2    3.20  10.50  1600   GSAN 4  ESG 1.4-2
           SGSA 80-4-22K-10Z-FP  3.54  4.52  80.00   10     -     22.00  3.2    3.20  16.00   995   GSAN 4  ESG 1.4-2
           SGSA 100-4-22K-12Z-FP  3.54  4.52  100.00  12    -     22.00  3.2    3.20  20.00   795   GSAN 4  ESG 1.4-2
          •  For LB,DBS,D4 refer to SW/S drive shanks and R drive flange set   •  Maximum RPM may not be exceeded   •  For user guide, see pages 377-383
          (1)  Minimum cutting width
          (2)  Maximum cutting width
          (3)  Number of inserts
          (4)  Cutting depth maximum
          (5)  Maximum RPM
          (6)  Master insert identification
          For inserts, see pages: GSAN (372)
          For holders, see pages: SW/S (371)




                                                                    12°
          GSAN
          SELF-GRIP Slitting Inserts
                                                                       7°
                                                                      CW
                                                                     RE
                                                              Dimensions                            Tough 1   Hard



                                                                                                       IC328  IC908
           Designation                         CW                                RE
           GSAN 3                              3.00                              0.20                 •     •
           GSAN 4                              4.00                              0.24                 •
          For tools, see pages: SGSA (372) • SGSF/A-M-JHP (371) • SGSF/A-MM-JHP (372)
